IBM E54 User Manual

US-9
SELF-DIAGNOSIS
FUNCTION

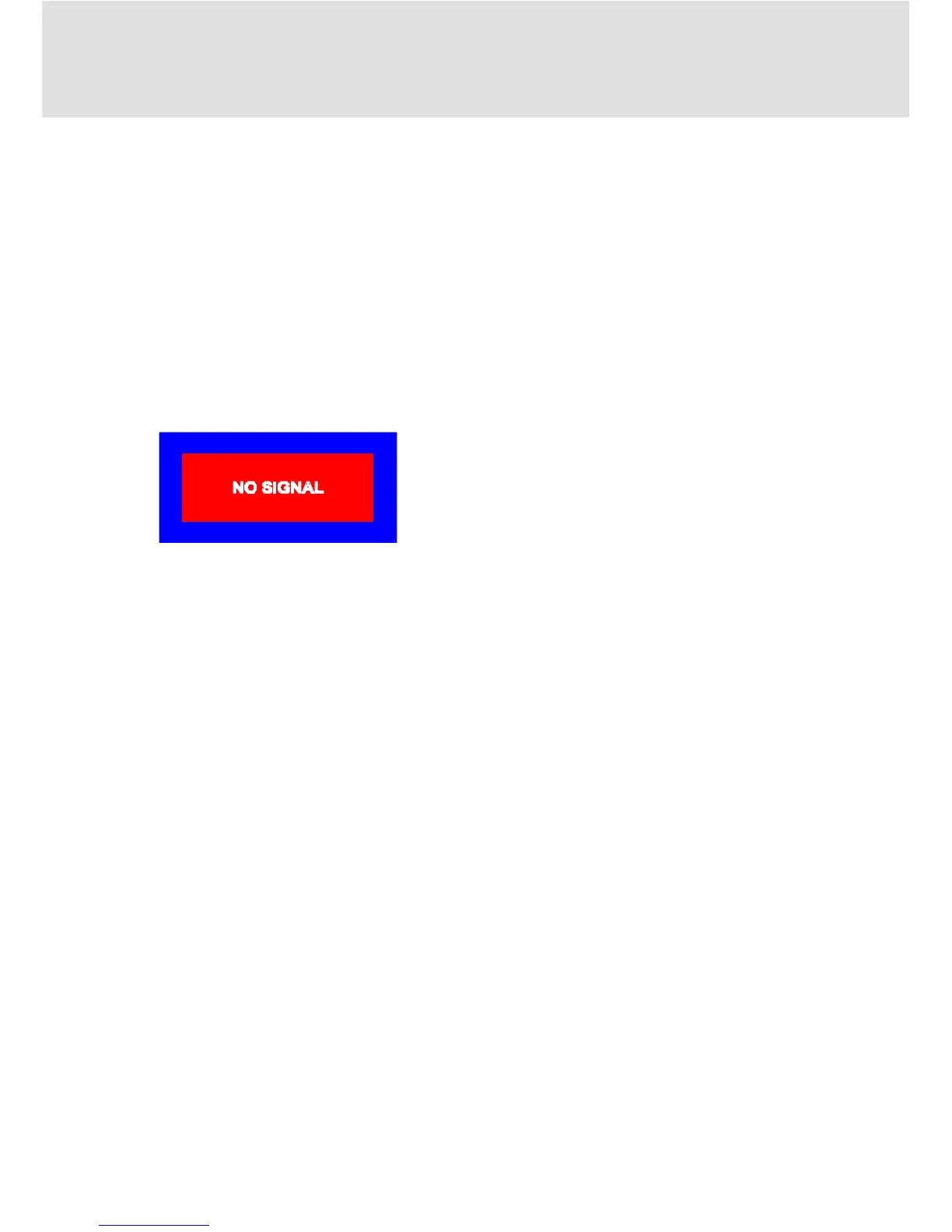

This monitor is equipped with a self-diagnosis
function. You can easily distinguish if the problem is
on the monitor or on the computer by using the
monitor’s built-in selftest function. With the monitor
power ON, disconnect the signal cable from computer.
If you see a “NO SIGNAL” image on the screen, the
monitor is functioning properly, and the problem is
with the MONITOR side or signal cable.
Screen Size
15 in. visual diagonal
Viewable screen size
13.75 in.
Anti-Glare, Anti-
Reflective Coating*
Dot Pitch
0.28 mm diagonal
0.24 mm horizontal
Dis
p
la
y
Area
Default
Full Scan
(H x W)
262 x 196 mm
(10.31 x 7.72 in.),
typical
282 x 211 mm
(11.1 x 8.31 in.),
depends on signal timing
Dis
p
la
y
Colors
Infinite
Max.
Resolution
1280 Dots x 1024 Lines
Com
p
atibilit
y
Graphic modes with
horizontal frequencies
between 30 KHz to 69
KHz
S
y
nchronization
Horizontal:
Vertical:
30 to 69 KHz
50 to 120Hz
Bandwidth
110 MHz
In
p
ut Si
g
nal
Video: RGB Analog
Sync.: TTL Separate
Si
g
nal Cable
15-pin D-sub connector
SPECIFICATIONS

IBM E54 Specifications

General

Brand	IBM
Model	E54
Category	Monitor
Language	English
