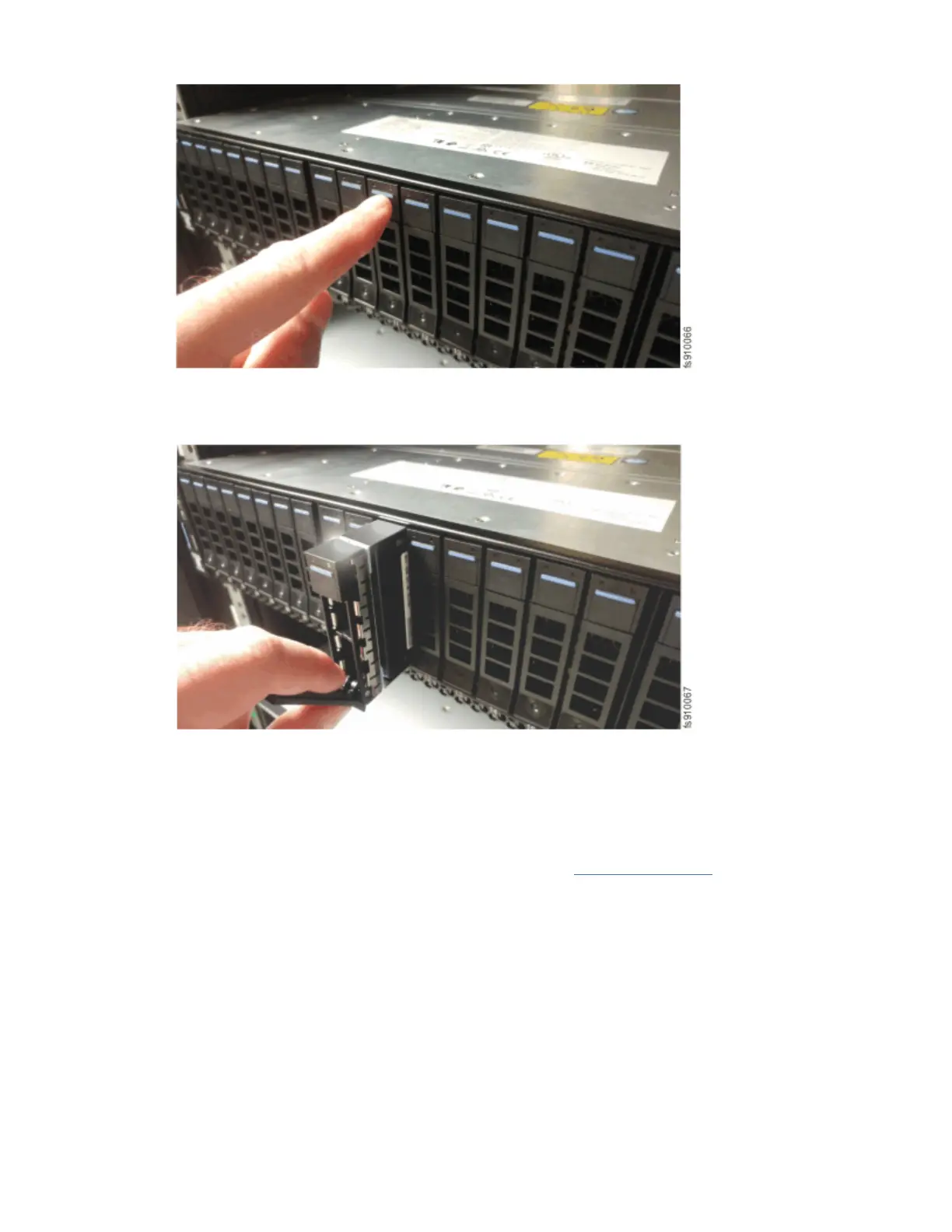

Figure 1. Unlocking the drive and release latch
2. Lower the handle and slide the drive out of the enclosure, as shown in this gure.
Figure 2. Removing the drive
Replacing the drive
1. Ensure that the LED indicators are at the top of the drive.
2. Press the blue touchpoint to unlock the latching handle on the new drive.
3. Slide the new drive into the node canister, as shown in the Figure 3 on page 22. Press on the drive
label near the bottom of the drive to ensure that the drive is fully inserted into the slot.
Chapter 2. Servicing
21
