a) Press the blue touchpoint to unlock the latching handle, as shown in Figure 18 on page 11. Unlock
the drive slot and release latch.

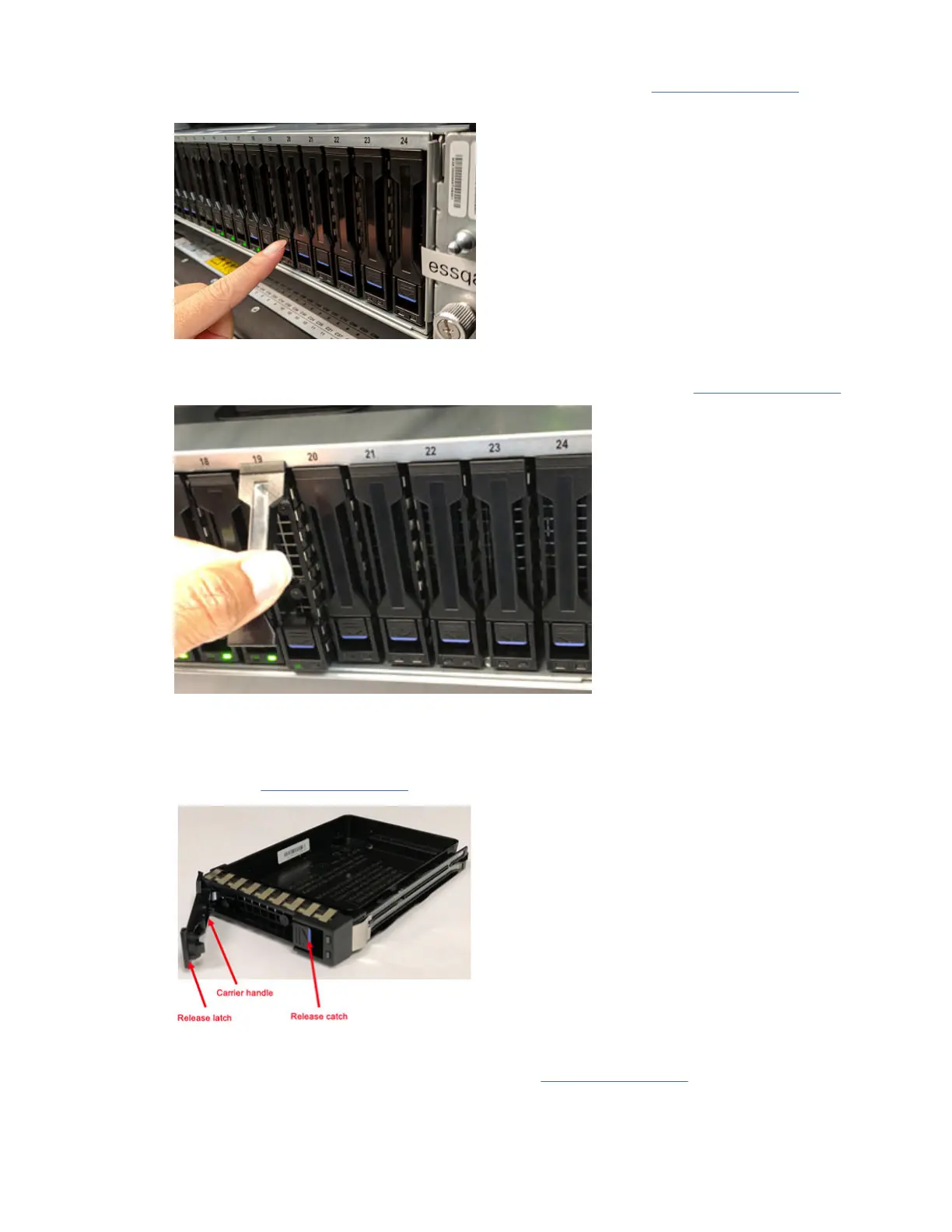

Figure 18. Unlocking the drive slot and release latch
b) Raise the handle and slide the drive ller out of the enclosure, as shown in Figure 19 on page 11.
Figure 19. Removing drive ller
2. Replace with the drive ller replacement part.
a) Press the release catch on the drive carrier in the direction of the arrow to open the handle as
identied in Figure 20 on page 11. The cam releases from the locked position.
Figure 20. Releasing catch
b) Hold the drive blank the correct way up, as shown in Figure 21 on page 12.
Chapter 1. Servicing (customer tasks)
11
