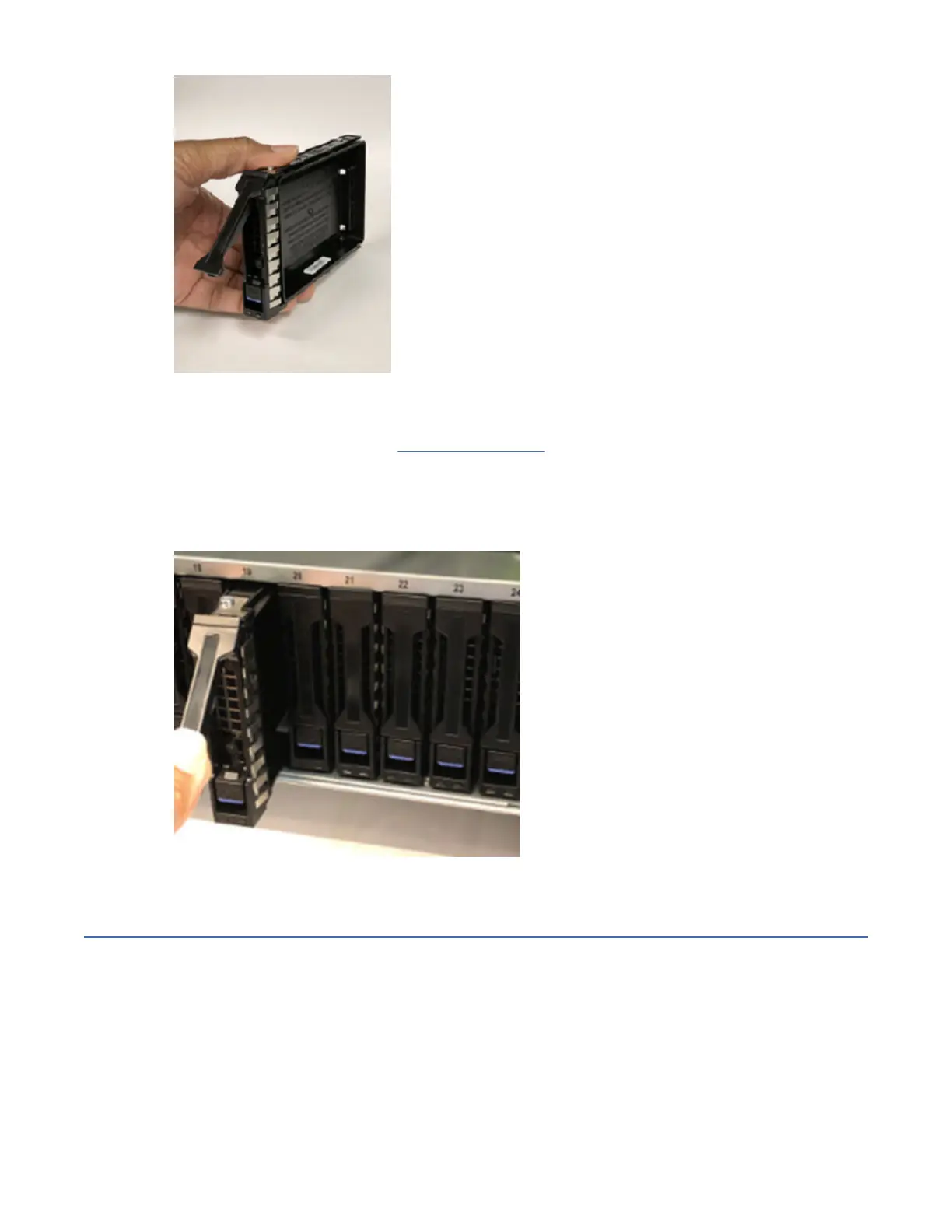

Figure 21. Holding the drive blank
c) Ensure that the carrier handle is in the fully open position.
d) Grab the drive ller as shown in Figure 21 on page 12.
e) Press the release handle downward until the release latch connects with the release catch and the
drive carrier assembly locks into place.
f) Ensure that the drive carrier assembly is properly installed fully inside the drive bay so that it is
flush with the face of the enclosure.
Figure 22. Inserting the drive ller
Removing and replacing a power module
Refer to the service procedure to remove and replace a power module of an IBM Elastic Storage System
3200 enclosure.
The following steps are the high-level flow of the procedure:
1. Follow the appropriate steps to prepare for a service action to release the CMA arm.
2. Conrm the faulty power module location based on fault LED.
3. Unplug power cable to the faulty power module.
4. Remove the faulty power module.
5. Install the replacement power module part.
12
IBM Elastic Storage System 3200: Service Guide
