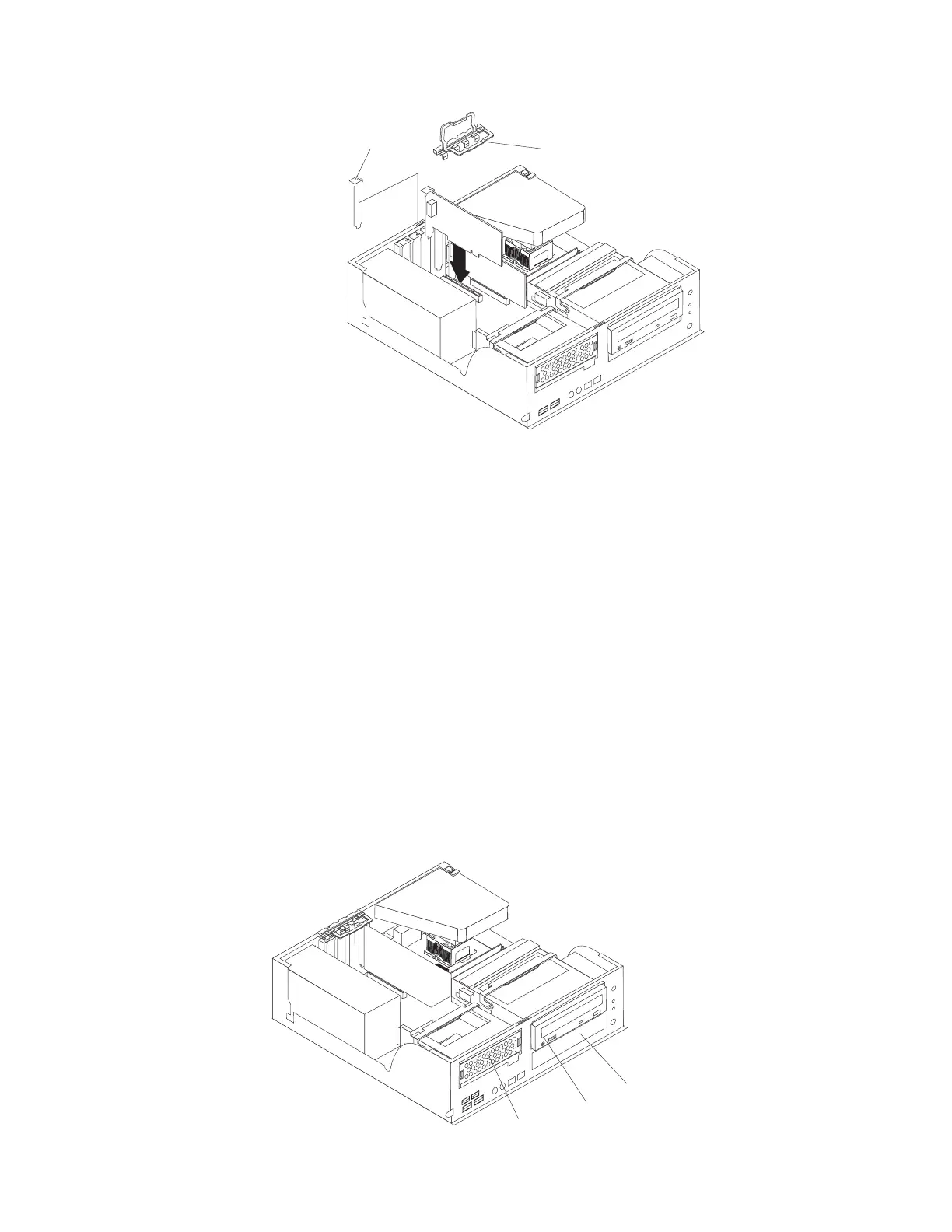

Expansion-slot cover
Adapter-support bracket
11. Connect required cables to the adapter. Route cables so that they do not block
the flow of air from the fans.
12. If you have another adapter to install, repeat steps 1 through 9.
13. Reinstall the rear adapter-support bracket; then, rotate the bracket to the
closed (locked) position.
14. Replace the frame-support bracket.
15. If you have other options to install or remove, do so now; otherwise, replace
the cover (see “Replacing the cover” on page 21), reconnect the external
cables and power cords, and turn on the computer. Then, go to “Completing
the installation” on page 40.
Installing internal drives
Depending on your computer model, one or more of the following drives might be
installed in your computer:
v Hard disk
v CD-ROM, CD-RW, or DVD/CD-RW combo
Internal drive bays: Your M Pro Type 6220 comes with an IDE CD-ROM,
CD-RW, or DVD/CD-RW drive in bay 2 and a hard disk drive in bay 3. You can
replace failed internal drives. For instructions on replacing an internal drive, see the
User’s Guide.
Bay 1
Bay 2
Bay 3
Chapter 2. Installing the hardware 17
