IBM IntelliStation M Pro Installation Guide

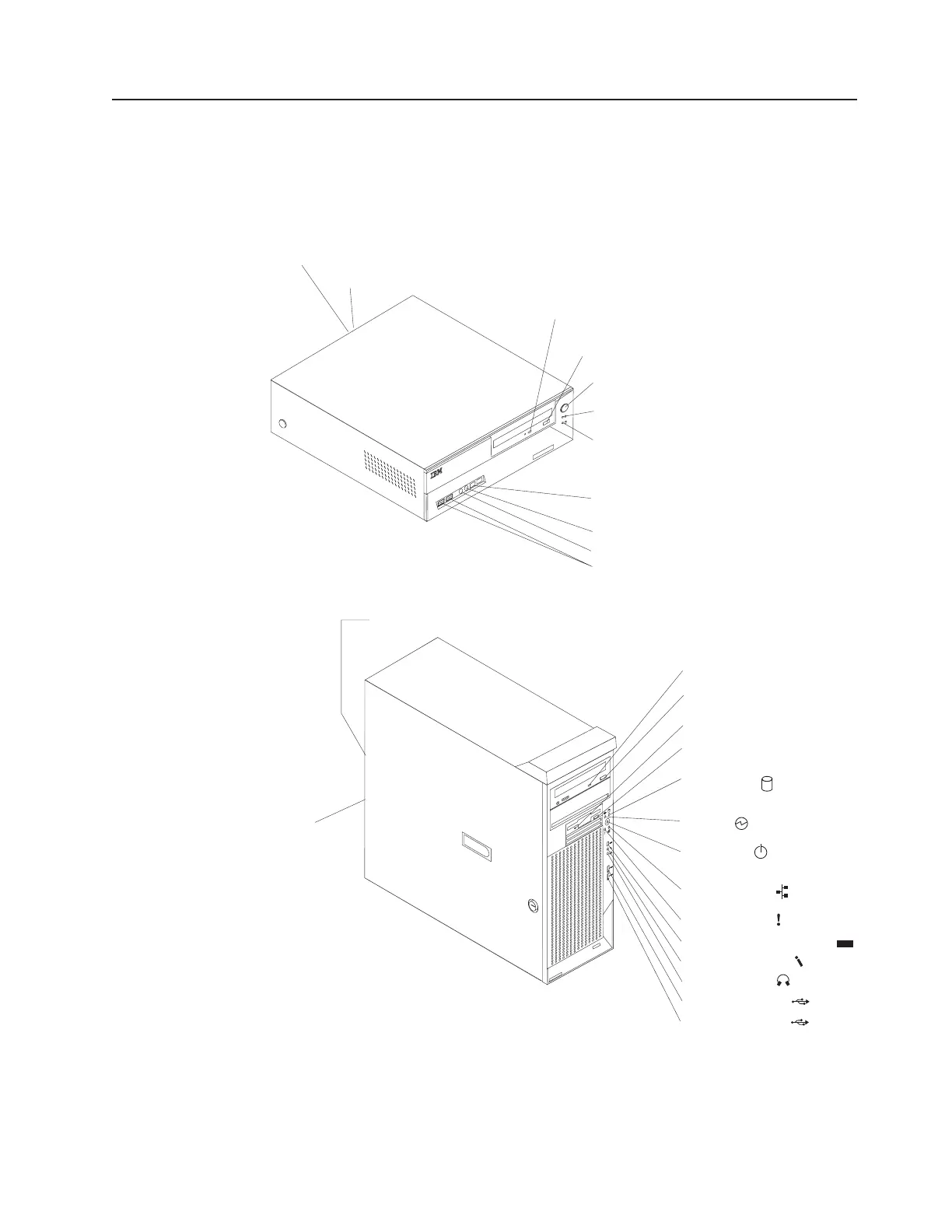

Controls and LEDs
This section identifies the controls and indicators on the M Pro Types 6220 and
6230.
Type 6220 - Desktop model
Hard disk drive
activity LED
Power-on LED
Power-control
button
CD eject
button
CD-ROM drive
activity LED
Ethernet transmit/
receive activity
Ethernet link status LED
USB ports
IEEE 1394 (FireWire)
connector
Microphone connector
Line out connector
Type 6230 - Tower model
CD-eject
button
CD-ROM drive
activity LED
Diskette-eject
button
Hard disk drive
activity LED
Power-on
LED
Power-control
button
System error LED
Diskette drive
activity LED
Ethernet link status LED
Ethernet transmit/
receive activity LED
1394
1394
Line out connector
Microphone connector
IEEE 1394 (FireWire) connector
USB port connector
USB port connector
Ethernet
transmit/receive
activity LED
CD-ROM drive activity LED
When this LED is lit, it indicates that the CD-ROM drive is in use.
CD-eject button
Press this button to release a CD from the CD-ROM drive.
Chapter 1. Introduction 7
