Removing the side cover
To remove the side cover, you might find it easier to lay the computer on its side.
Complete the following steps to remove the side cover of the computer:
1. Review the “Installation guidelines” on page 10.
2. Turn off the computer and all attached devices (see “Turning off the computer”
on page 43); then, disconnect all power cords and external cables.

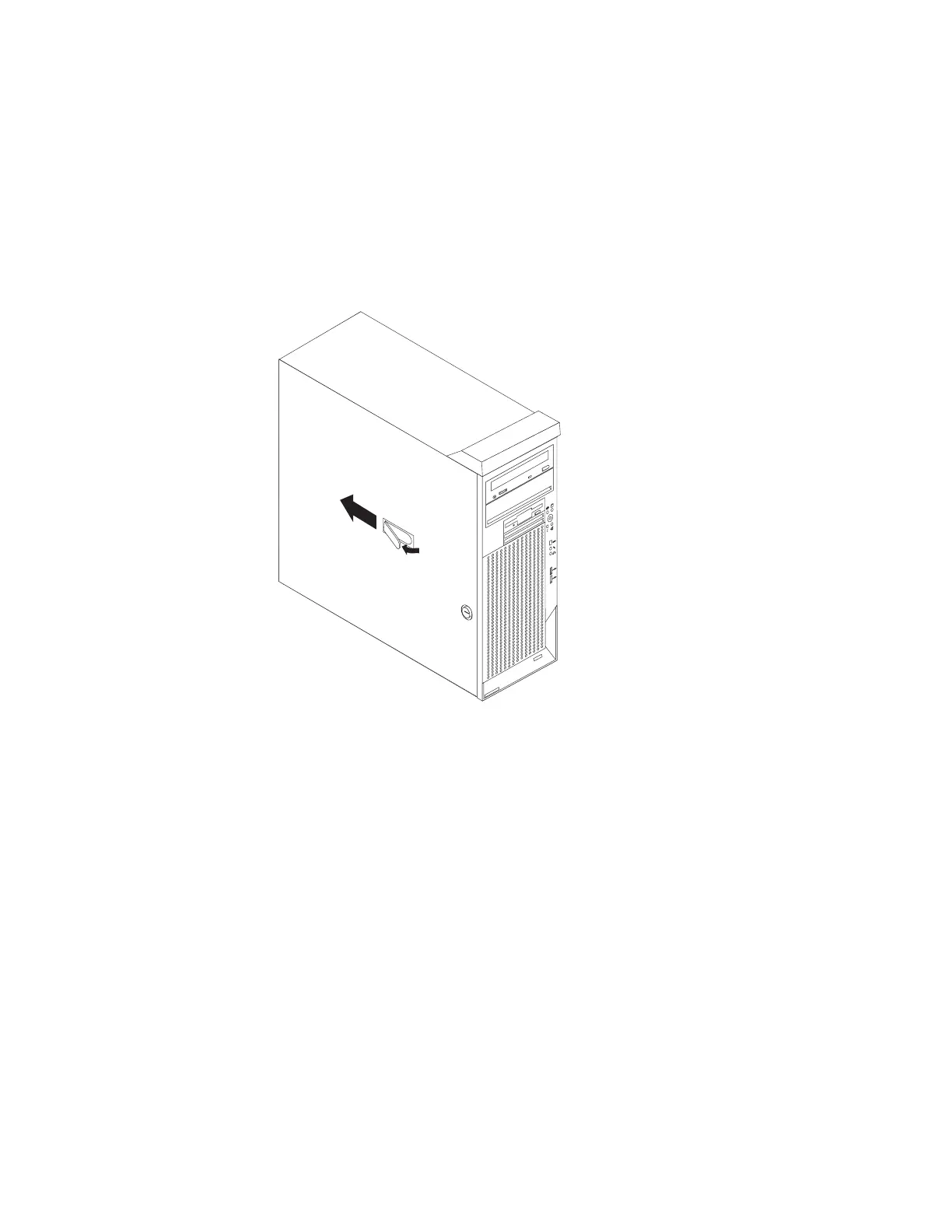

3. Pull the cover-release latch away from the computer, and push the side cover
toward the rear of the computer. Lift the side cover off the computer and set it
aside.
1
3
9
4
To replace the side cover, see “Replacing the side cover” on page 40
Attention: For proper cooling and airflow, replace the side cover before turning on
the computer. Operating the computer with the cover removed might damage
computer components.
26 IBM IntelliStation M Pro Types 6220 and 6230: Installation Guide
