IBM IntelliStation M Pro Installation Guide

Notes:
1. An optional SCSI adapter is required to connect external SCSI devices.
2. The SCSI cables used by the integrated SCSI controller cannot be used with an
optional SCSI adapter.

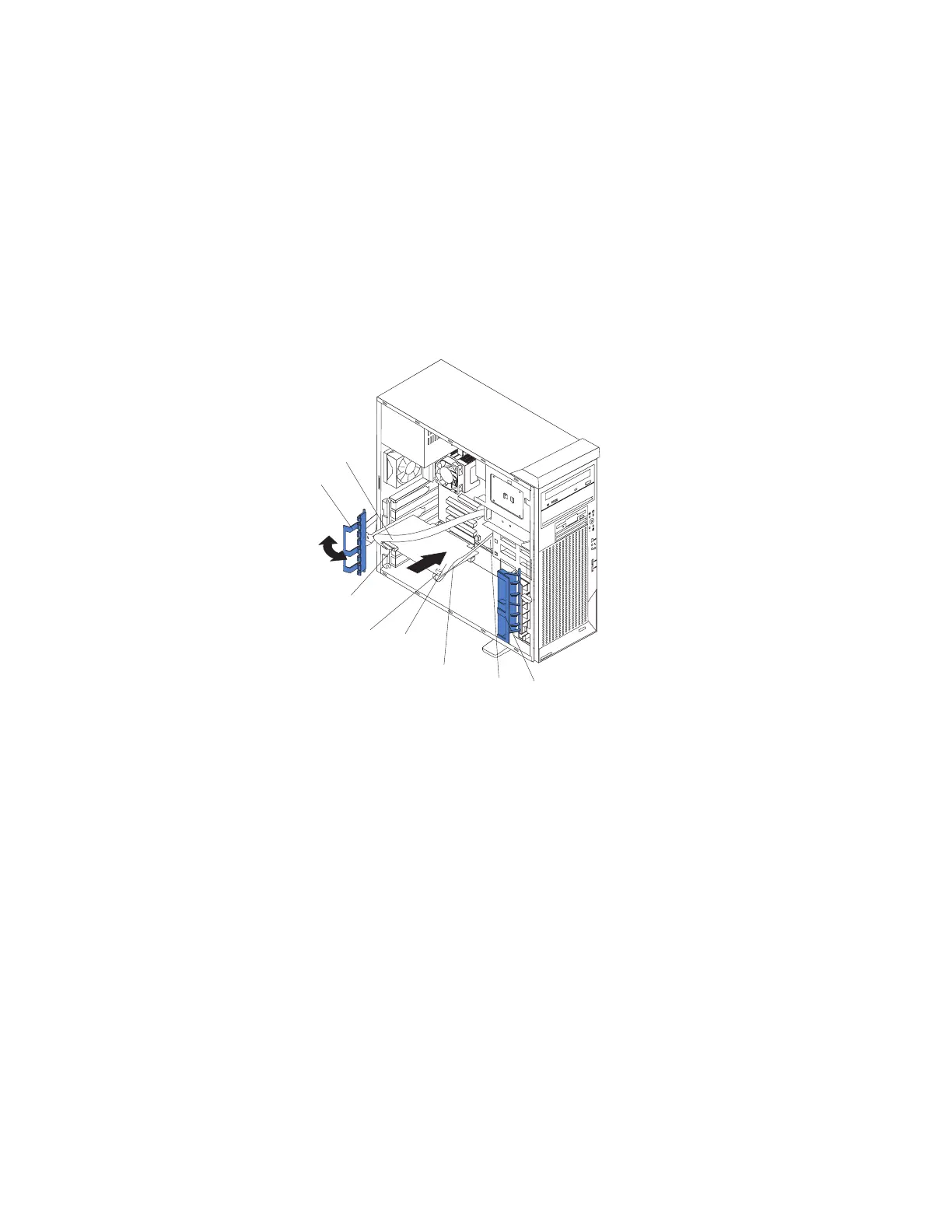

Complete the following steps to cable an optional SCSI adapter:
1. Install the SCSI adapter (see “Installing an adapter” on page 28).
2. Connect the SCSI-signal cable to the adapter and one or more of the signal
cable connectors to the rear of the SCSI devices.
3. Connect the SCSI-activity-indicator cable to the adapter and to the SCSI-LED
connector on the system board. See “System-board internal connectors” on
page 24 for the location of the SCSI-LED connector.
1
3
9
4
Rear
adapter
support
bracket
Front
adapter
support
bracket
SCSI
adapter
SCSI
activity
indicator
cable
SCSI
LED
SCSI signal
cable connector
SCSI activity
indicator cable
connector
SCSI
signal
cable
4. Complete the installation of the optional SCSI adapter.
30 IBM IntelliStation M Pro Types 6220 and 6230: Installation Guide
