IBM NetVista Hardware

101

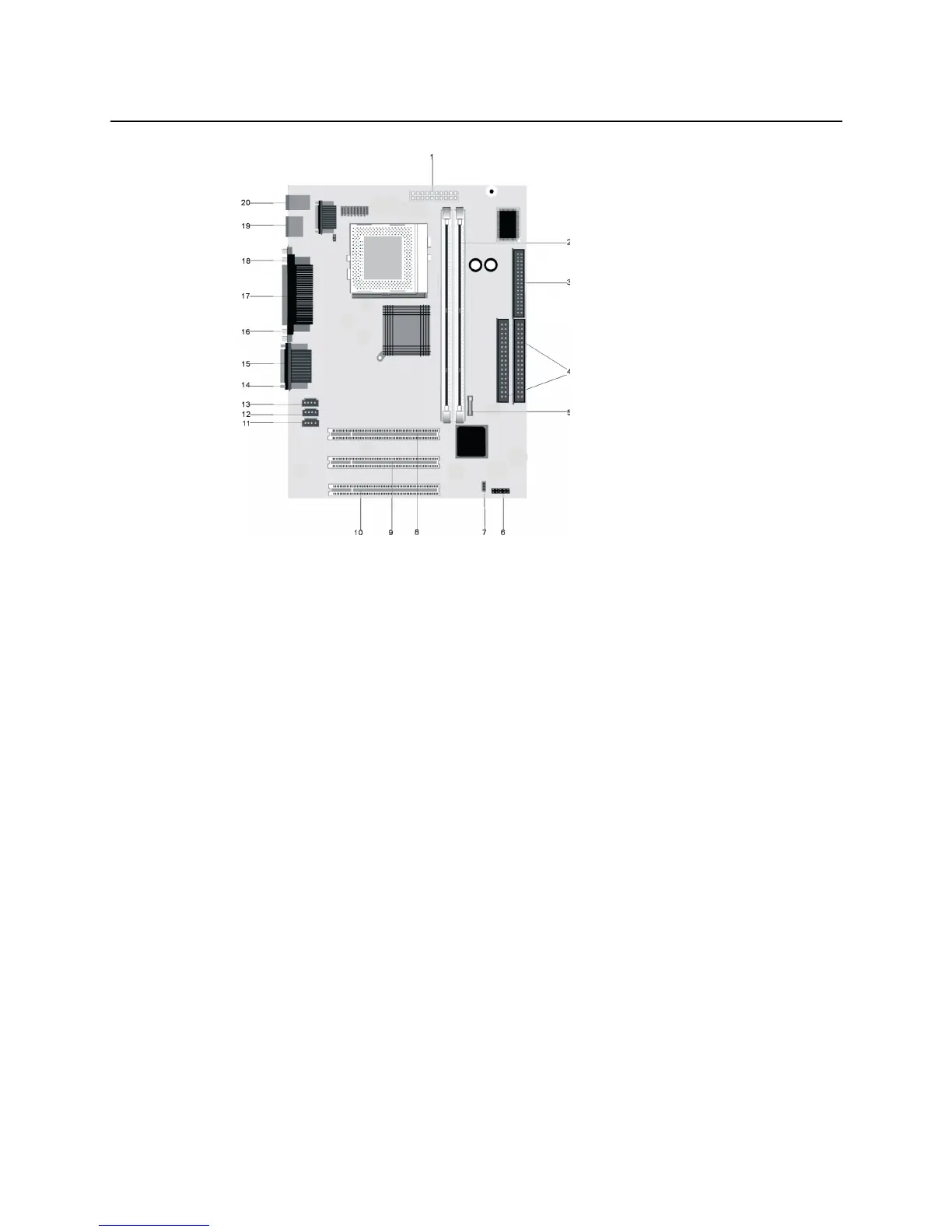

Layout of System Board of Machine Types 6266, 6270, 6276, 6279, 6280 and 6286
Jumpers and Connectors Locations of System Board of Machine Types
6266, 6270, 6276, 6279, 6280 and 6286
1. Power connector (JWR1) 11. Modem In connector (J7)
2. DIMM 12. Aux Line In connector (J6)
3. Floppy Disk connector
(FDD1)
13 CD In connector (J5)
4. Hard Disk Connector (IDE1
& IDE2)
14. Audio Port connector
5. Battery 15. Serial Port connector 1
(COM A)
6. Case connector (JFP2) 16. VGA Port connector
7. Clear CMOS jumper
(JBAT)
17.Parallel Port connector
(LPT1)
8. PCI SLOT 1 18. Serial Port connector 2 (COM B)
9. PCI SLOT 2 19 USB
10. PCI SLOT 3 20. Mouse and Keyboard connector (JKBMS1)

IBM NetVista Specifications

General

Category	Desktop
Model	NetVista
Processor Type	Intel Celeron
Memory Type	SDRAM
Optical Drive	CD-ROM, DVD-ROM, or CD-RW
Graphics	Integrated Intel graphics
Audio	Integrated audio
Network	10/100 Ethernet
Operating System	Windows 2000, Windows XP (Varies by model)
Expansion Slots	PCI
Ports	USB, serial, parallel, VGA, audio in/out
