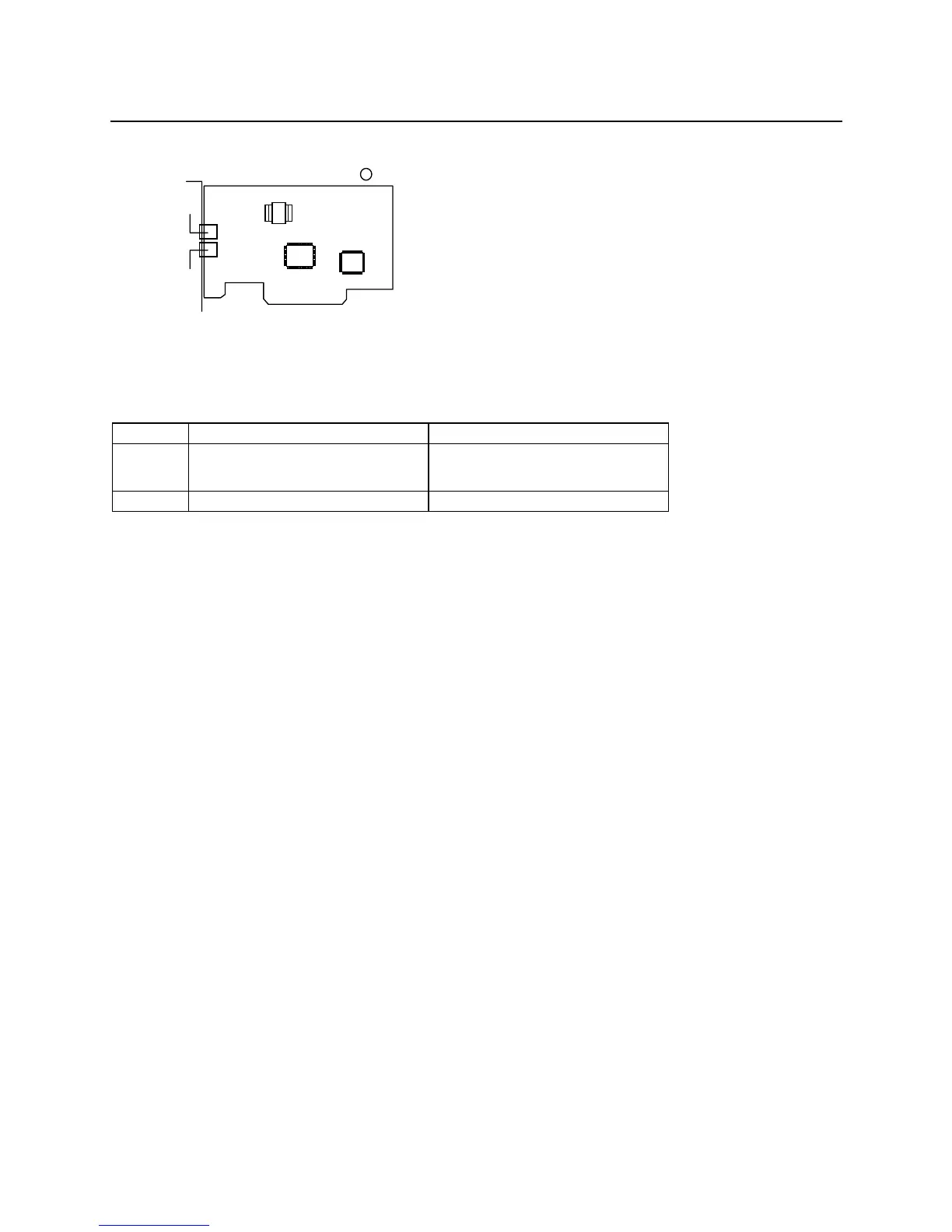

Factory-Installed Modem Card Layout
Factory-Installed Modem Card Layout
Factory-Installed Modem Card Connector Functions
Item Function Connect to
1
Telephone line-out
Some modem adapters may come without
this jack.
Telephone set
2 Telephone line-in Telephone line
NOTE: Care should be taken while connecting the voice-in/speaker-out connector. The longer exposed end (approx. 15mm) of the cable
should be connected to the modem card. The other end should be connected to the system board.
1
2

IBM NetVista Specifications

General

Category	Desktop
Model	NetVista
Processor Type	Intel Celeron
Memory Type	SDRAM
Optical Drive	CD-ROM, DVD-ROM, or CD-RW
Graphics	Integrated Intel graphics
Audio	Integrated audio
Network	10/100 Ethernet
Operating System	Windows 2000, Windows XP (Varies by model)
Expansion Slots	PCI
Ports	USB, serial, parallel, VGA, audio in/out
