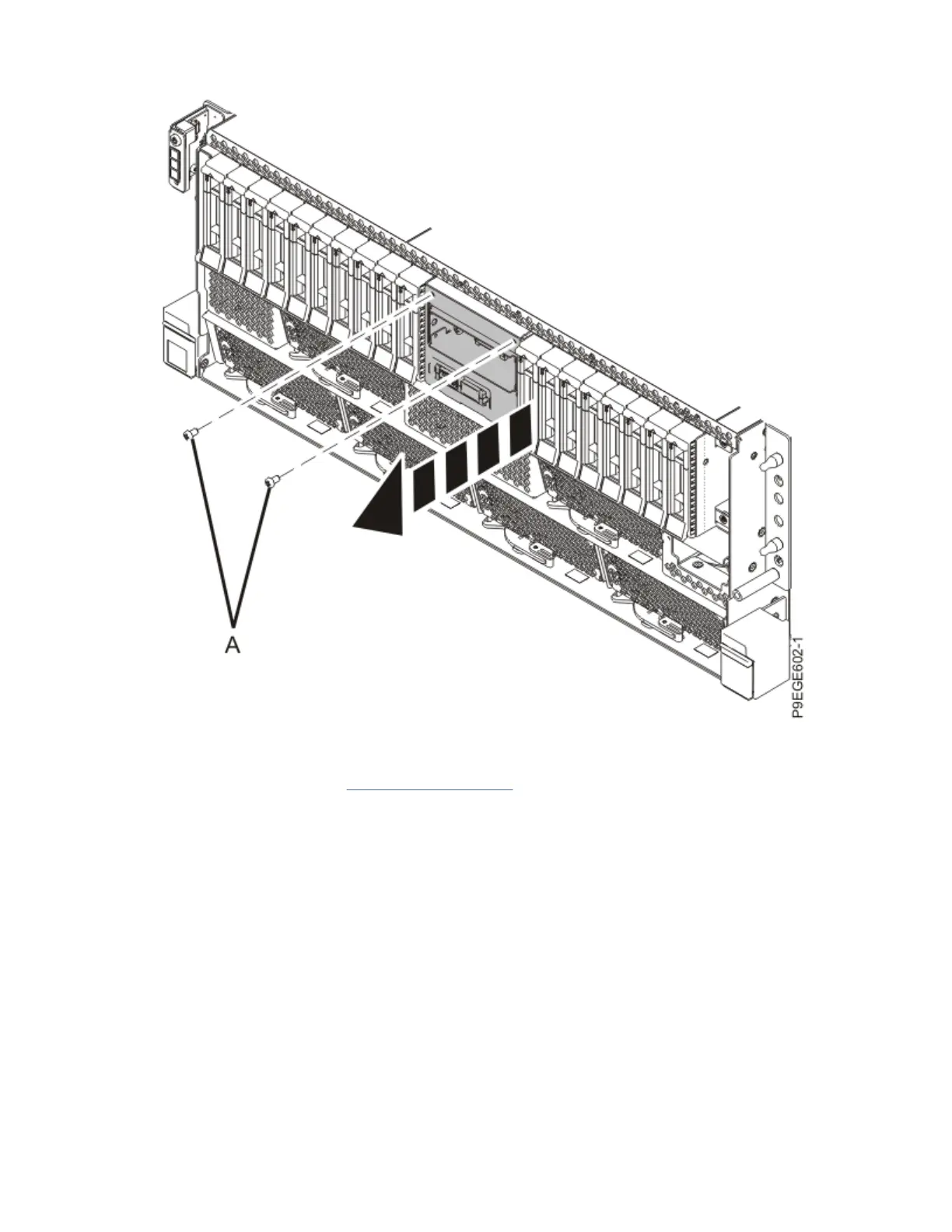

Figure 111. Removing the control panel display holder from the bracket for a rack-mounted system

7. For the stand-alone system, remove the two screws (A) that secure the control panel display holder

to the chassis as shown in Figure 111 on page 116.

Remove the control panel display housing and cable from the system. Ensure that the cable does not

catch on any components while you are removing it.

116

Power Systems: Power Systems: Control panel
