To set up the rails in the rack, do the following:
1. Determine the EIA locations for the drawer rails. (See the previous figures.)

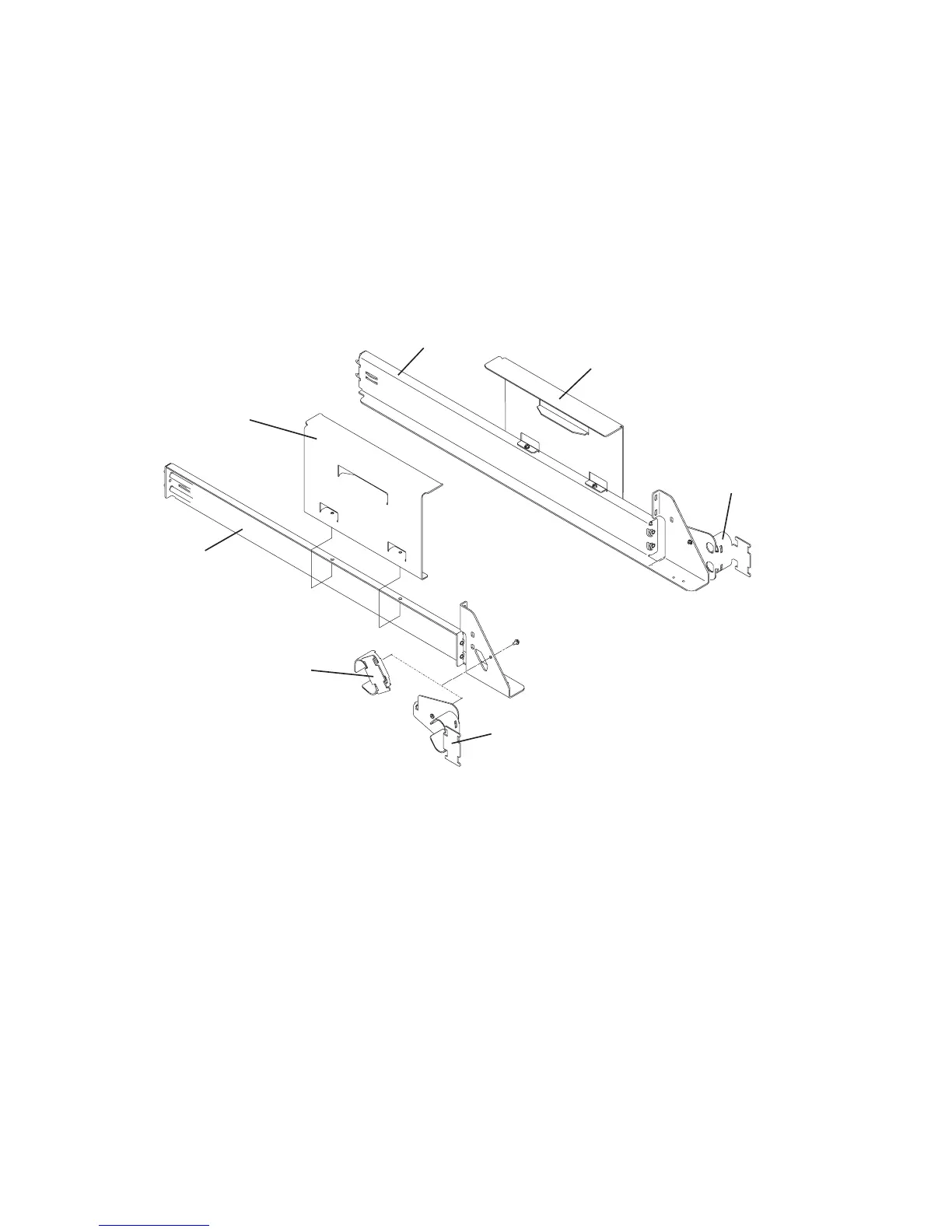

2. Assemble the drawer rails as follows:
a. Use two screws to attach an anti-tip guide (2) to each rail.
b. Use one screw to attach a Model T00 type cable guide (3) to each rail. The
Model T00 type rack has room for guides on both the left and right rails.
1
2
3
4
5
3
2
8 Installation Guide
