Selecting a device displays the details of all the nodes on each path between the controller and the
device. Following is an example for Display SAS fabric path graphical view.
An alternative view can be displayed by selecting F11 (SAS Fabric Path Data View). Following is an
example of SAS Fabric Path Data View.

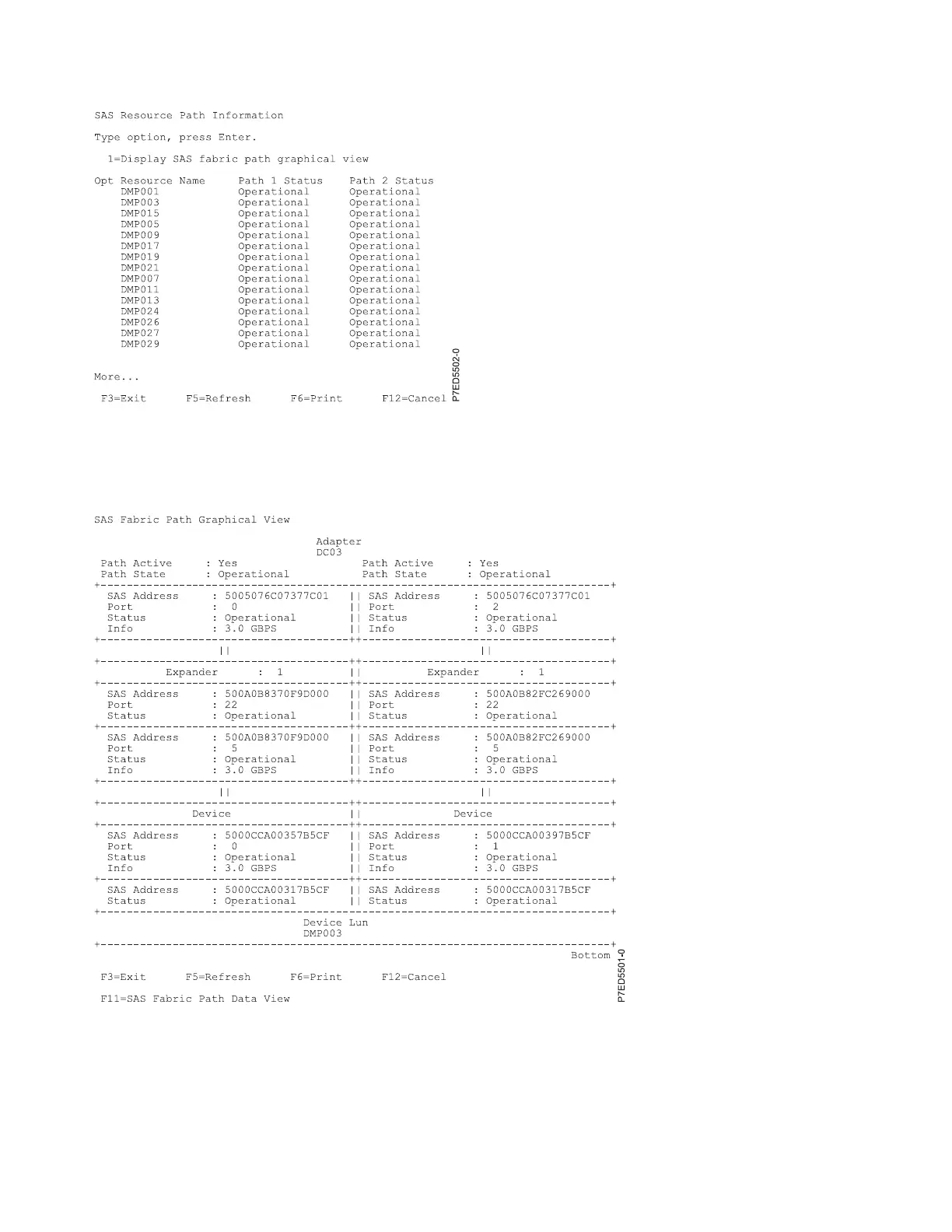

Figure 43. SAS resource path information
Figure 44. SAS fabric path graphical view
52 SAS RAID controllers for IBM i
