IBM Storwize V5030 Quick Installation Guide

For more information about the power supply indicators, see “Storwize V5000
Gen2 2077-92F expansion enclosure LEDs and indicators” on page 135.
Removing the fascia: 2077-92F
To complete some service tasks, you can remove each component of the fascia from
the front of a 2077-92F expansion enclosure.
About this task
The expansion enclosure has a 4U front fascia that covers the display panel and a
1U fascia that covers the power supply units (PSUs). As Figure 73 on page 86
shows, the fascias are independent; you can remove or replace one without having
to remove or replace the other.
svc01032

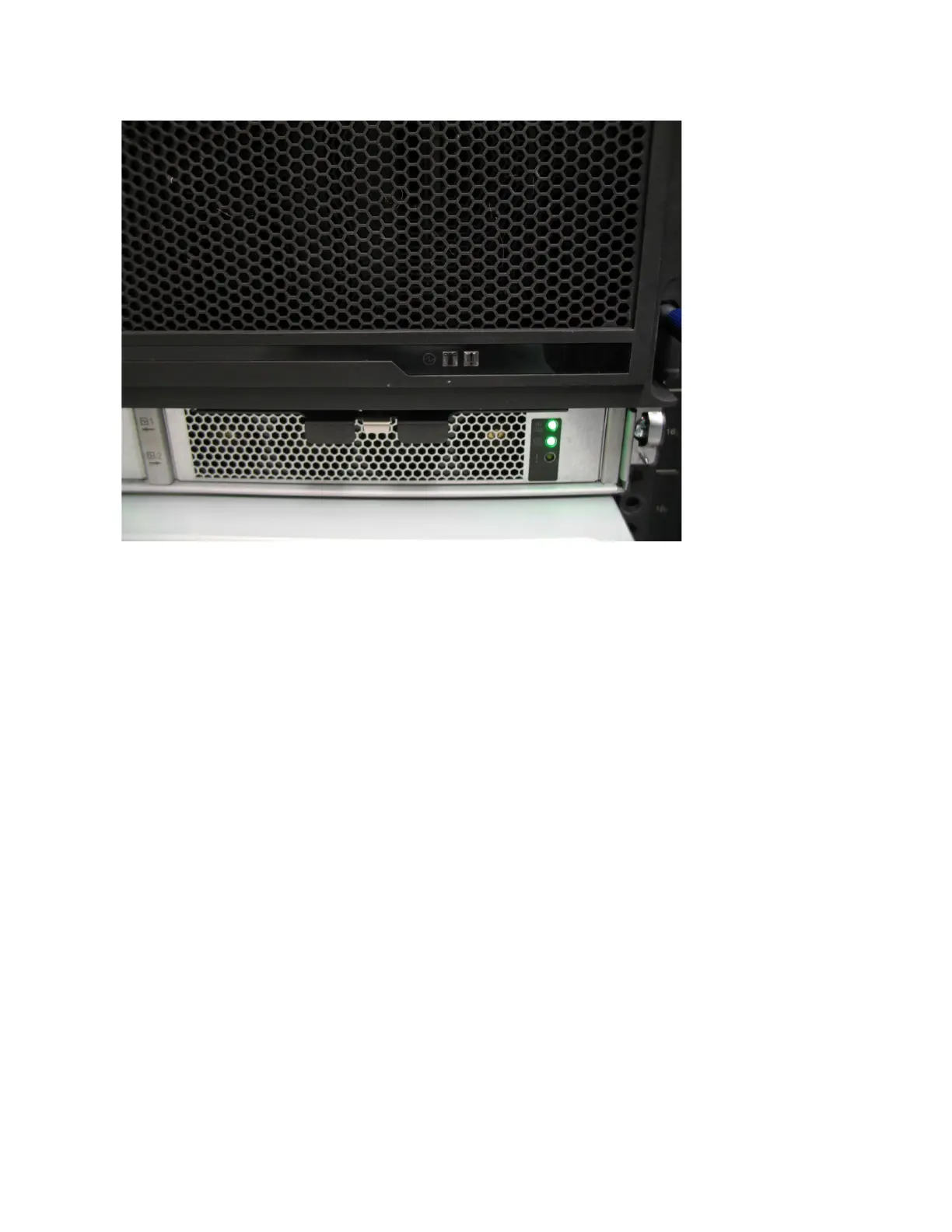

Figure 72. Power supply indicators
Chapter 2. Installing the system hardware 85

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
