5. Place the cover in a safe location.

Replace the cover

6. To reinstall the cover, or replace it with one from FRU stock, follow the

procedure in “Installing or replacing the top cover: 2077-92F” on page 71.

Installing or replacing the support rails: 2077-92F

You must install the support rails before you can install a 2077-92F expansion

enclosure in a rack.

Procedure

1. Locate the hardware that is used to install the rails, including the M4xL6 and

M5xL13 screws. Set the hardware, which is shown in Figure 32, aside for use

later in the installation process.

svc00978

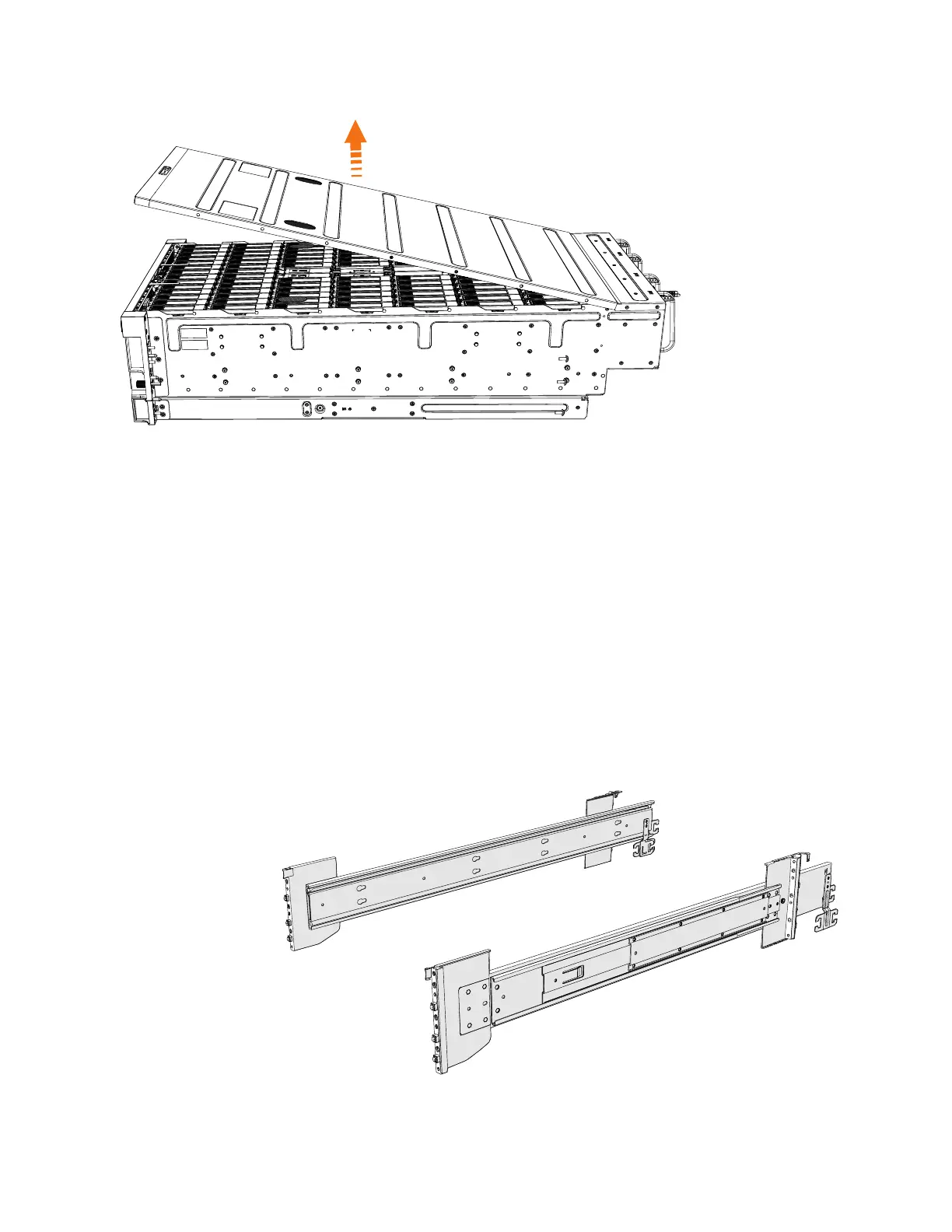

Figure 31. Removing the 2077-92F cover

svc00962

Figure 32. Support rails

Chapter 2. Installing the system hardware 49
