IBM Storwize V5030 Quick Installation Guide

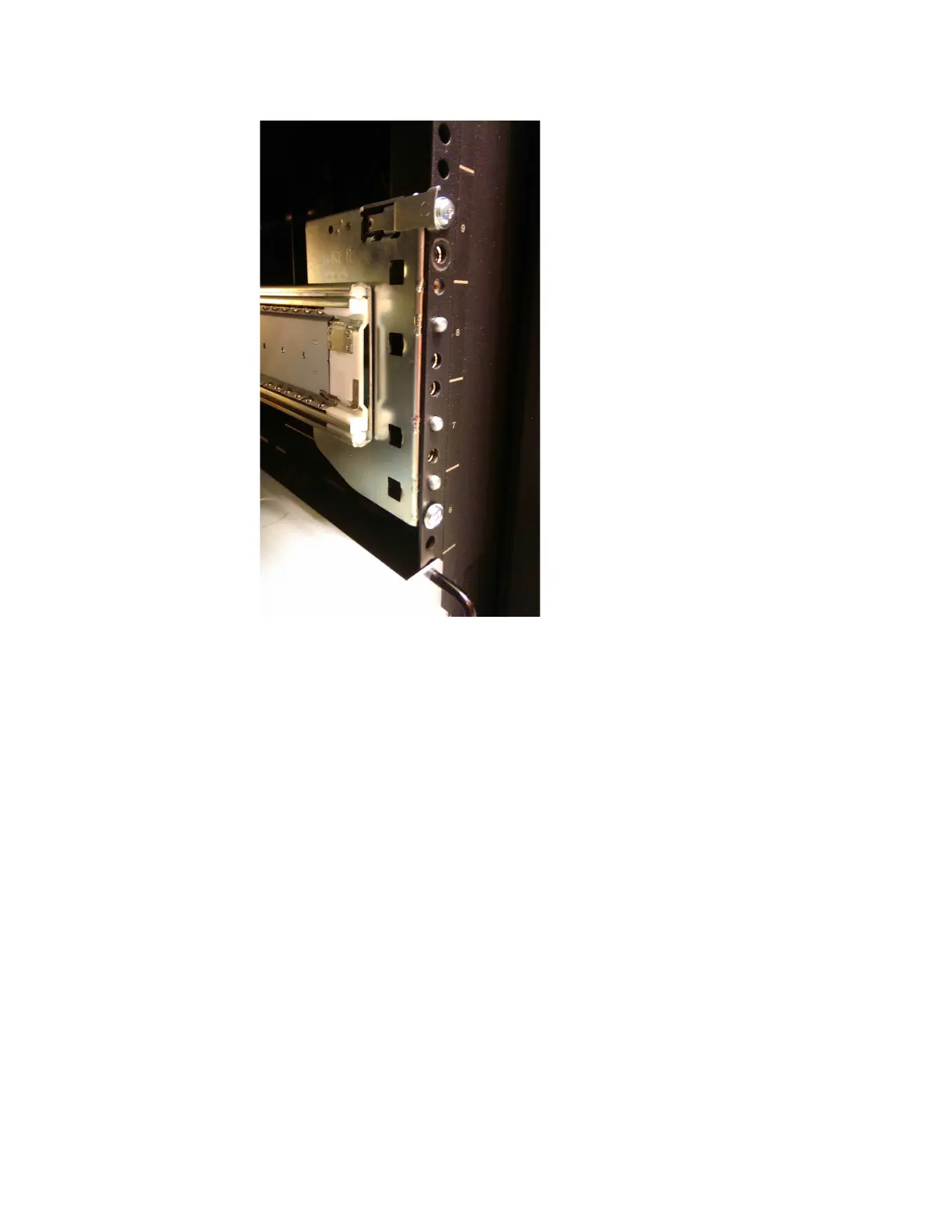

7. Repeat steps 5 on page 50 through 6 on page 51 to install the opposite rail.
8. Install the expansion enclosure in the rack, as described in “Installing or
replacing an expansion enclosure in a rack: 2077-92F.”
Installing or replacing an expansion enclosure in a rack:
2077-92F
Use the following procedure to place the 2077-92F expansion controller in a rack
during the installation process. To complete some service tasks, you might also
need to slide the enclosure back in to the rack.
svc01022
Figure 37. Example of the required rack space
52 Storwize V5000 Gen2: Quick Installation Guide

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
