To complete many service tasks, you can swing the CMA assemblies away from

the expansion enclosure. You do not have to completely remove the CMA

assemblies from the enclosure. For these service tasks, complete step 1 on page 65

through step 4 on page 66 in “Moving the cable management arms” on page 64.

However, you might need to remove a CMA assembly from the 2077-92F

expansion enclosures. To do so, complete step 1 on page 63 through step 8 on page

64 in following procedure.

Procedure

Remove the upper CMA assembly

The connectors of the CMA are installed on the rail hooks at the end of the

support rails. Figure 43 on page 63 shows the connectors on the upper CMA

assembly.

svc01017

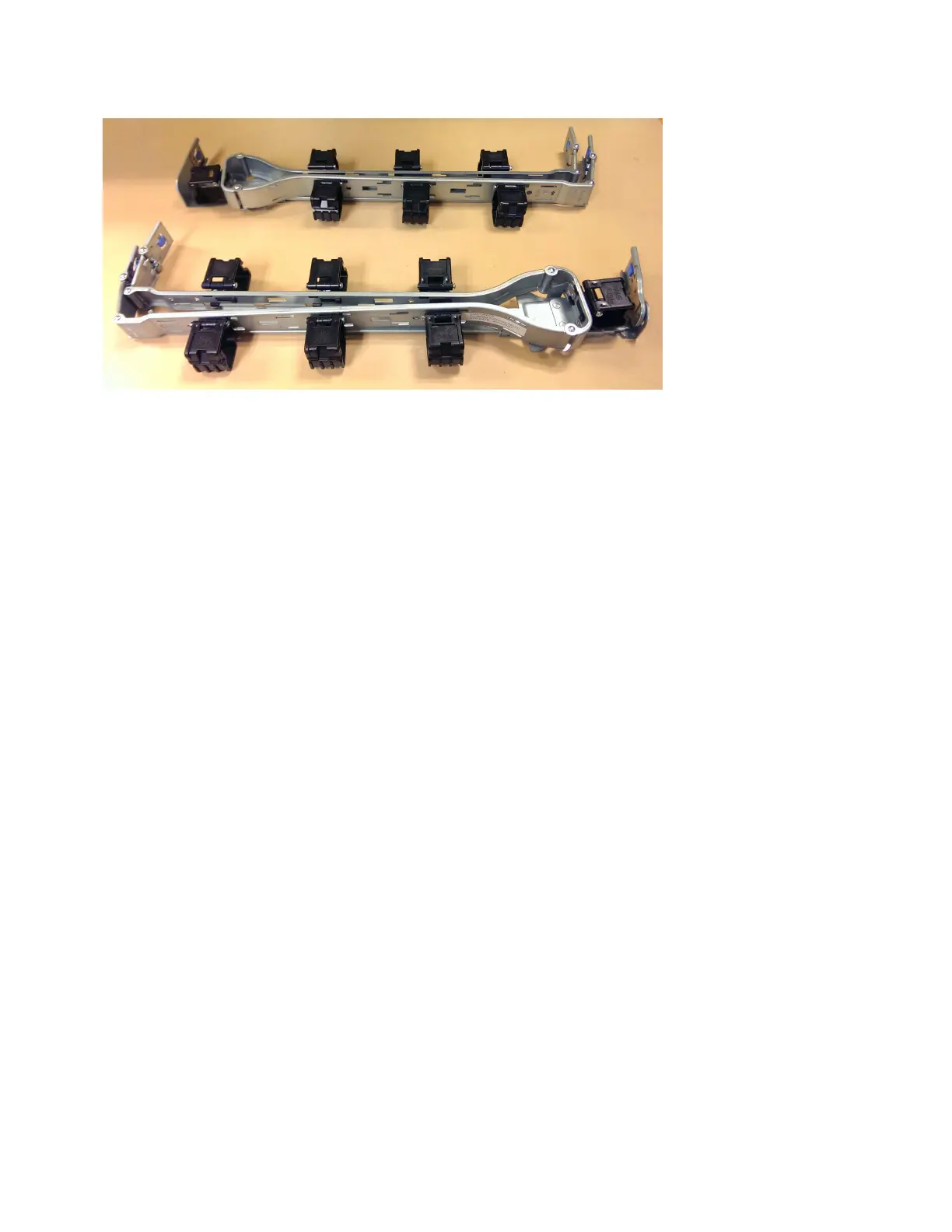

Figure 42. Upper and lower cable-management arms

62 Storwize V5000 Gen2: Quick Installation Guide
