IBM Storwize V7000 2076-124 User Manual

server.
Attention: Make sure the port connectors on the adapter are aligned
properly with the chassis on the rear of the server. An incorrectly seated
adapter might cause damage to the system board or the adapter.
12. Install PCI riser 1. See Installing a PCI riser-card assembly.
13. Install the cover. See Installing the cover.
14. Slide the server into the rack.
15. Reconnect the power cord and any cables that you removed.
16. Turn on the peripheral devices and the server.
Storing the full-length-adapter bracket
The following procedure is for a Tier 1 customer replaceable unit (CRU).
Replacement of Tier 1 CRUs is your responsibility. If IBM installs a Tier 1 CRU at
your request, you will be charged for the installation. Service agreements can be
purchased so that you can ask IBM to replace these units.
If you are removing a full-length adapter in the upper riser-card PCI slot and will
replace it with a shorter adapter or no adapter, you must remove the
full-length-adapter bracket from the end of the riser-card assembly and return the
bracket to its storage location.
System board
Chassis
Ethernet ports
Rubber
stopper
Adapter

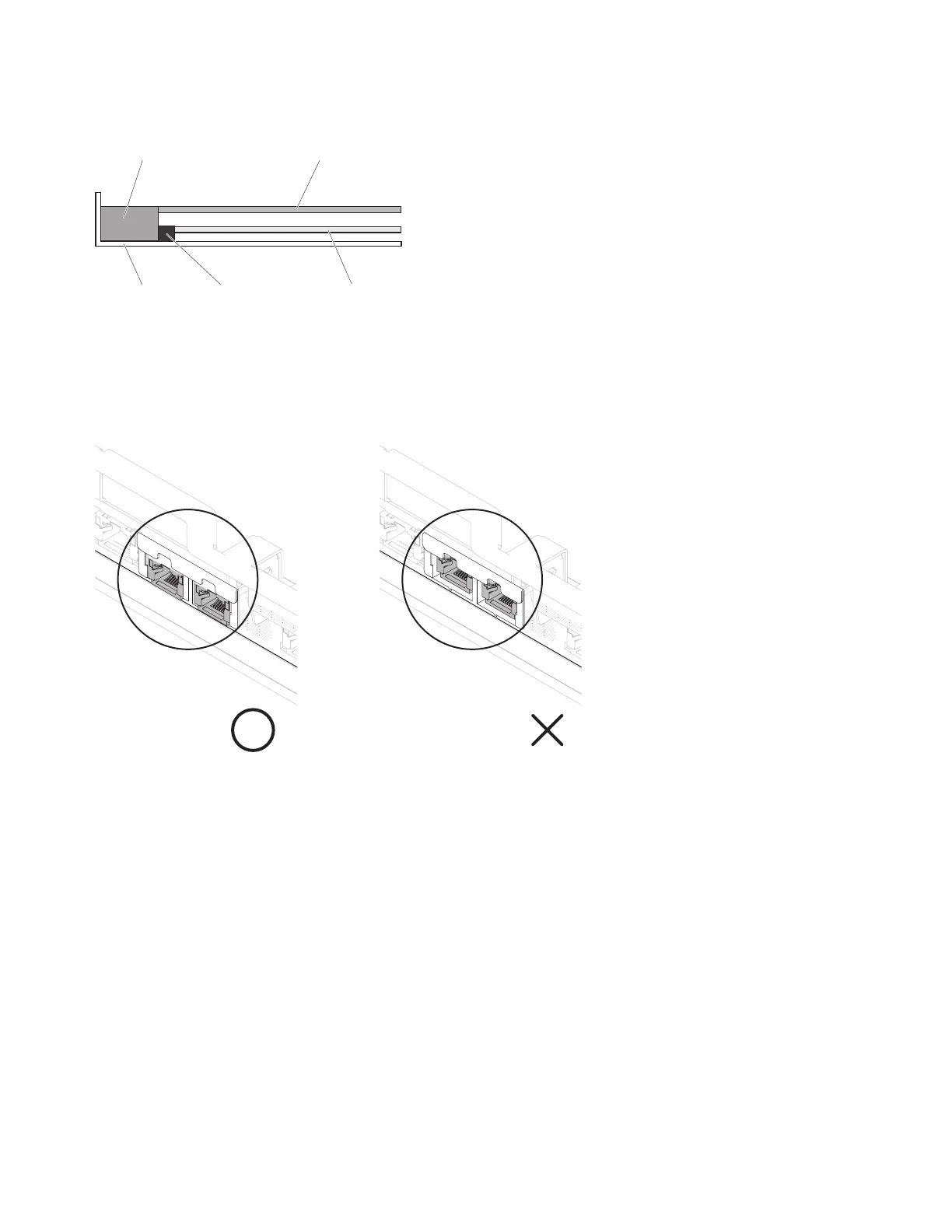

Figure 17. Side view of adapter in the server
Figure 18. Port connector alignment
110 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 2076-124 Specifications

General

Model	2076-124
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Bays	24
Processor Cores	8
Operating Temperature	10°C to 35°C
Power Supply	Dual, Hot-swappable
Drive Interface	SAS
Host Interface	8 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Cache Memory	8GB
