See Figure 37 for DIMM locations for the Storwize V7000 Unified System x3650 M2

server and Figure 38 on page 132 for DIMM locations for the Storwize V7000

Unified System x3650 M3 server.

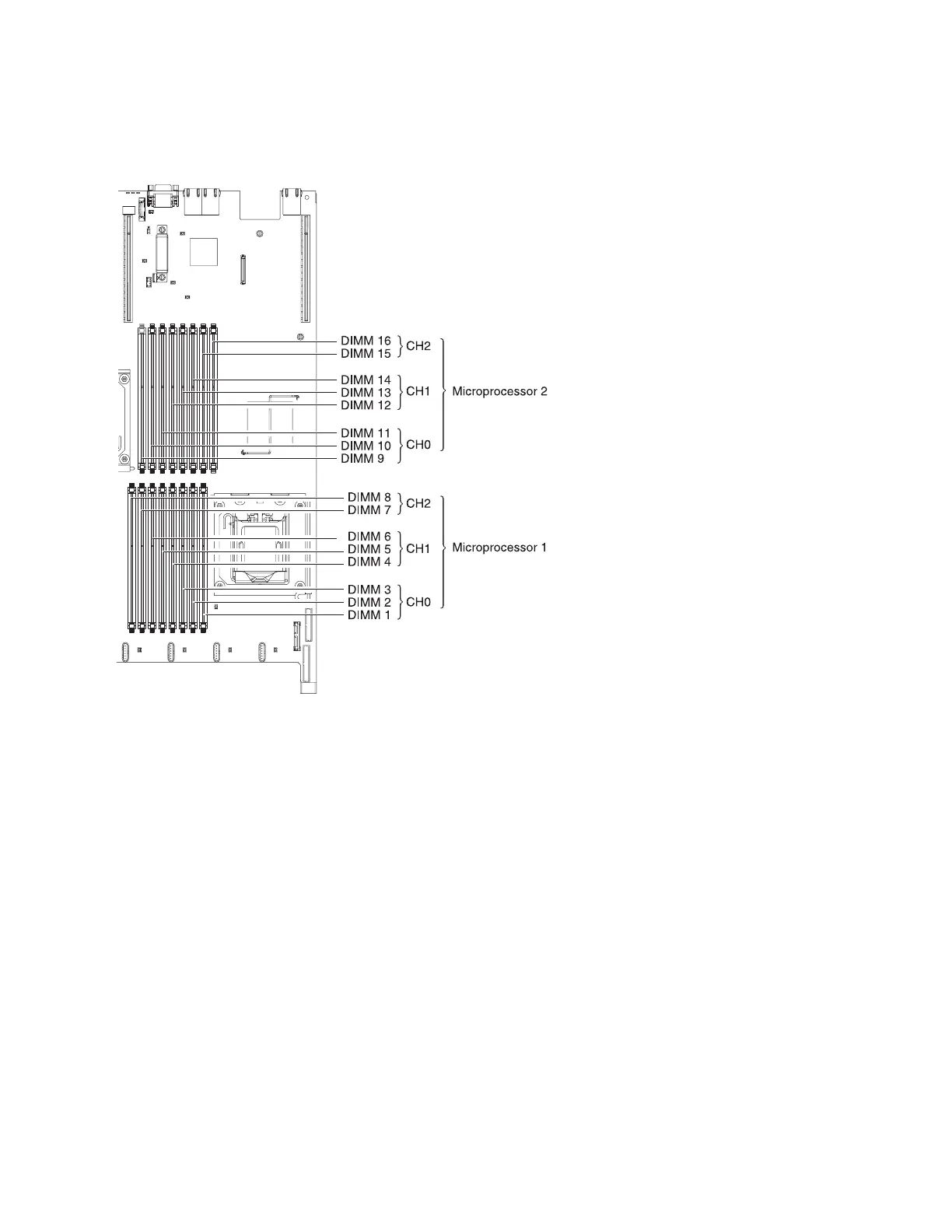

Figure 37. DIMM locations for the Storwize V7000 Unified System x3650 M2 server

Chapter 4. File module 131

Questions and Answers:

Need help?

Do you have a question about the IBM Storwize V7000 2076-124 and is the answer not in the manual?

IBM Storwize V7000 2076-124 Specifications

General

Model	2076-124
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Bays	24
Processor Cores	8
Operating Temperature	10°C to 35°C
Power Supply	Dual, Hot-swappable
Drive Interface	SAS
Host Interface	8 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Cache Memory	8GB
