IBM Storwize V7000 2076-124 User Manual

b. Grip the handle to pull the power supply out of the enclosure as shown in
Figure 56.
6. Insert the replacement power supply unit into the enclosure with the handle
pointing towards the center of the enclosure. Insert the unit in the same
orientation as the one that you removed.
svc00633

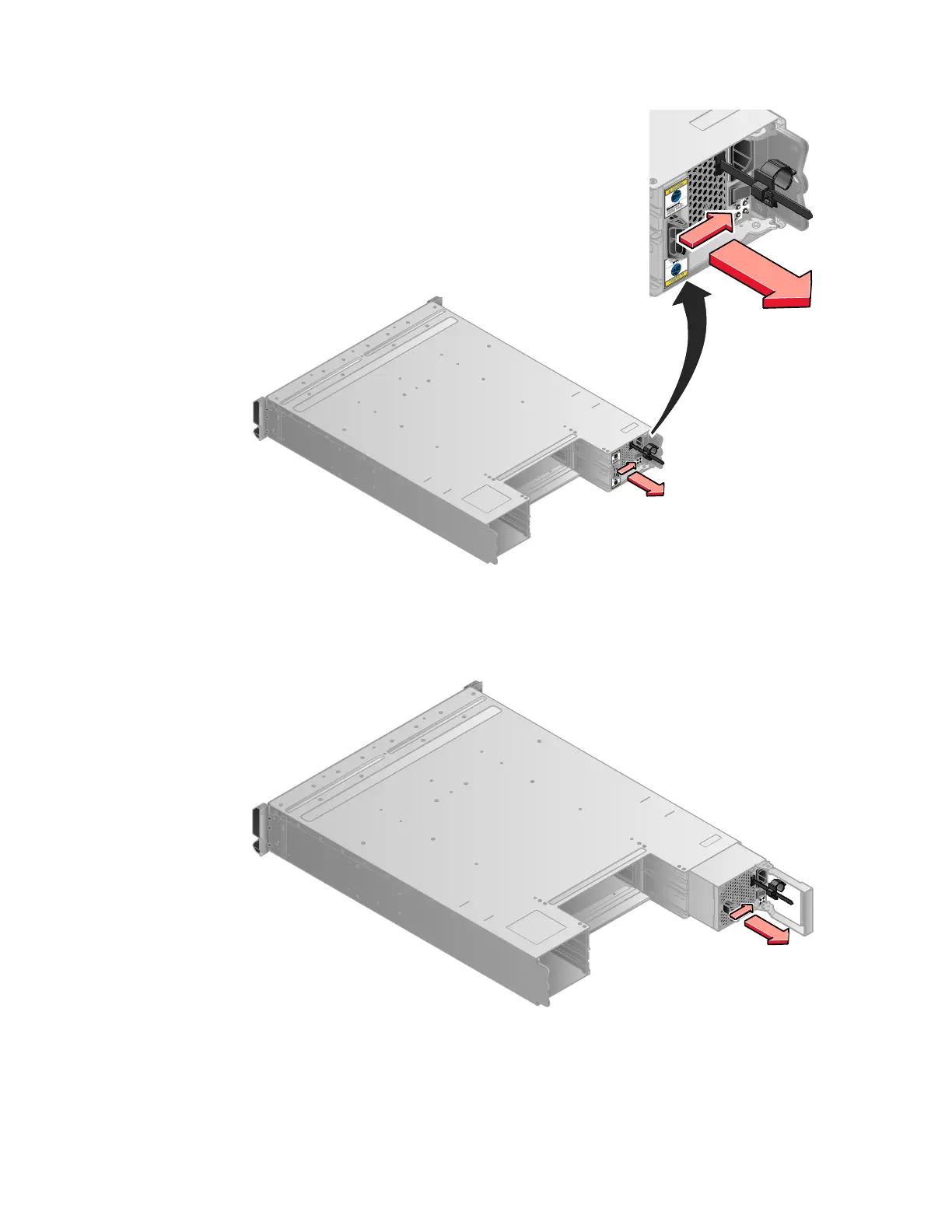

Figure 55. Directions for lifting the handle on the power supply unit
svc00632
Figure 56. Using the handle to remove a power supply unit
216 Storwize V7000 Unified: Problem Determination Guide Version

IBM Storwize V7000 2076-124 Specifications

General

Model	2076-124
RAID Levels	0, 1, 5, 6, 10
Form Factor	2U
Drive Bays	24
Processor Cores	8
Operating Temperature	10°C to 35°C
Power Supply	Dual, Hot-swappable
Drive Interface	SAS
Host Interface	8 Gbps Fibre Channel, 1 Gbps iSCSI, 10 Gbps iSCSI
Cache Memory	8GB
