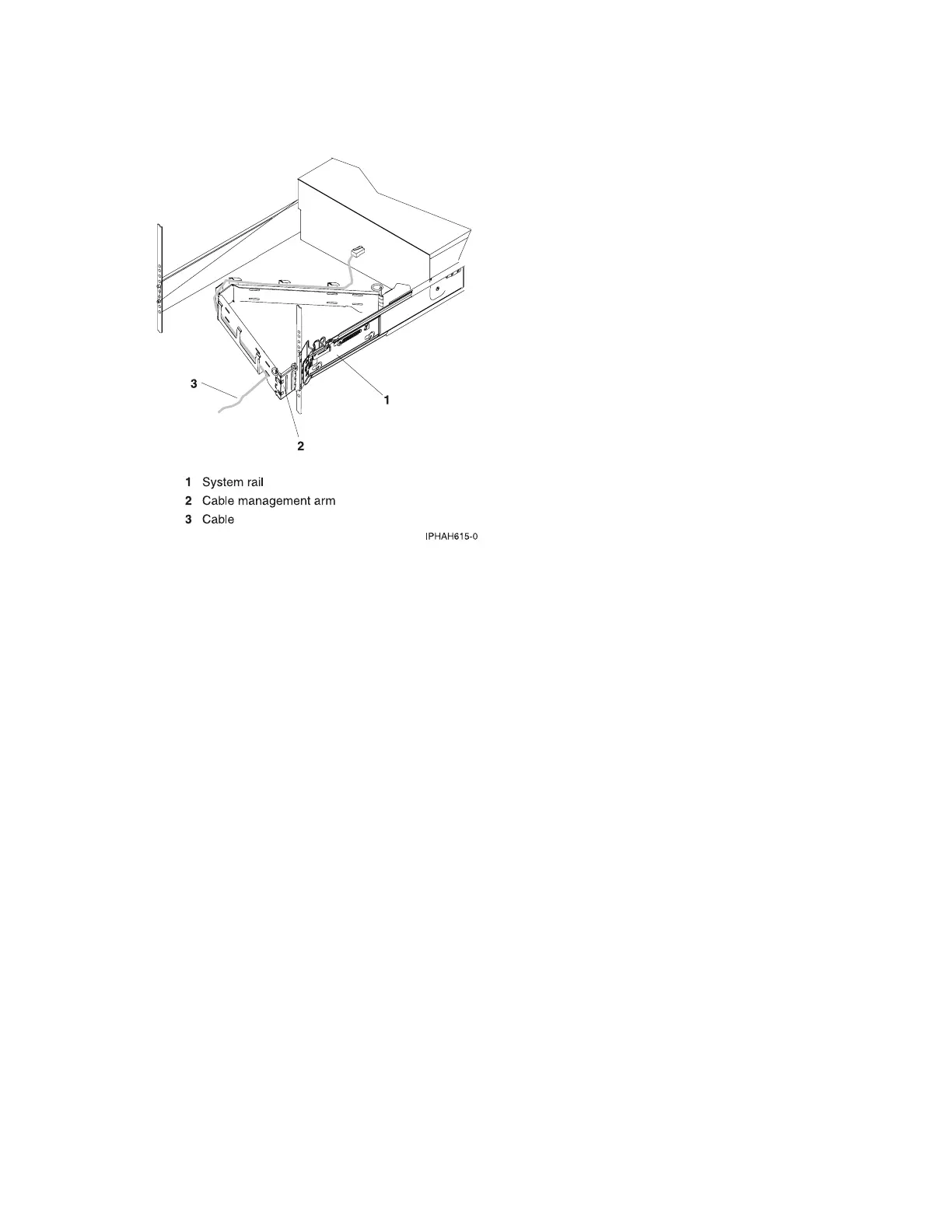

Routing the cables through the cable-management arm
__ Route the cables through the hooks along the cable-management arm and secure them with the straps
provided.
__ After attaching the cables to the cable-management arm, go to the front of the rack and move the system
drawer in and out. Observe cables and cable-management-arm movement to verify that the cables are not
binding.
134 System i and System p: Cabling your server
