2. Connect side A of the serial uninterruptible power supply conversion cable (with the internal threads)
to the vendor-supplied uninterruptible power supply cable.
Note: The IBM System p5 or eServer p5 server local serial ports (tty0 and tty1) and the RJ45 port on the
operator panel do not support uninterruptible power supply communications. The 2-Port
Asynchronous EIA-232 PCI Adapter (feature code 5723) is required as part of the server
configuration to allow serial communications to an uninterruptible power supply. IBM System p5
or eServer p5 servers with logical partitions must use Web/SNMP communications (a card or an
adapter) to attach to an uninterruptible power supply.
References
Find helpful information that supports the instructions for cabling your system.
Cables and adapters
Find some of the cables and adapters that might be installed on your model.
See Adapters, Devices, and Cable Information for Multiple Bus Systems
(http://
publib16.boulder.ibm.com/pseries/en_US/infocenter/base/hardware_docs/pdf/380516.pdf)
for a
description of cables and adapters that might be installed on your IBM System p5 or eServer p5 server.
The following table shows some of the cables and adapters that might be installed on your IBM System
i5 or eServer i5 model:
Table 1. Cables and adapters for your IBM System i5 or eServer i5 server
Cables and connectors Adapter card type
numbers
Adapter cards (located on the back of the server)
PCI two-line WAN
44H7xxx or 97H73xx
4745/2745/2742 PCI two-line WAN input/output adapter

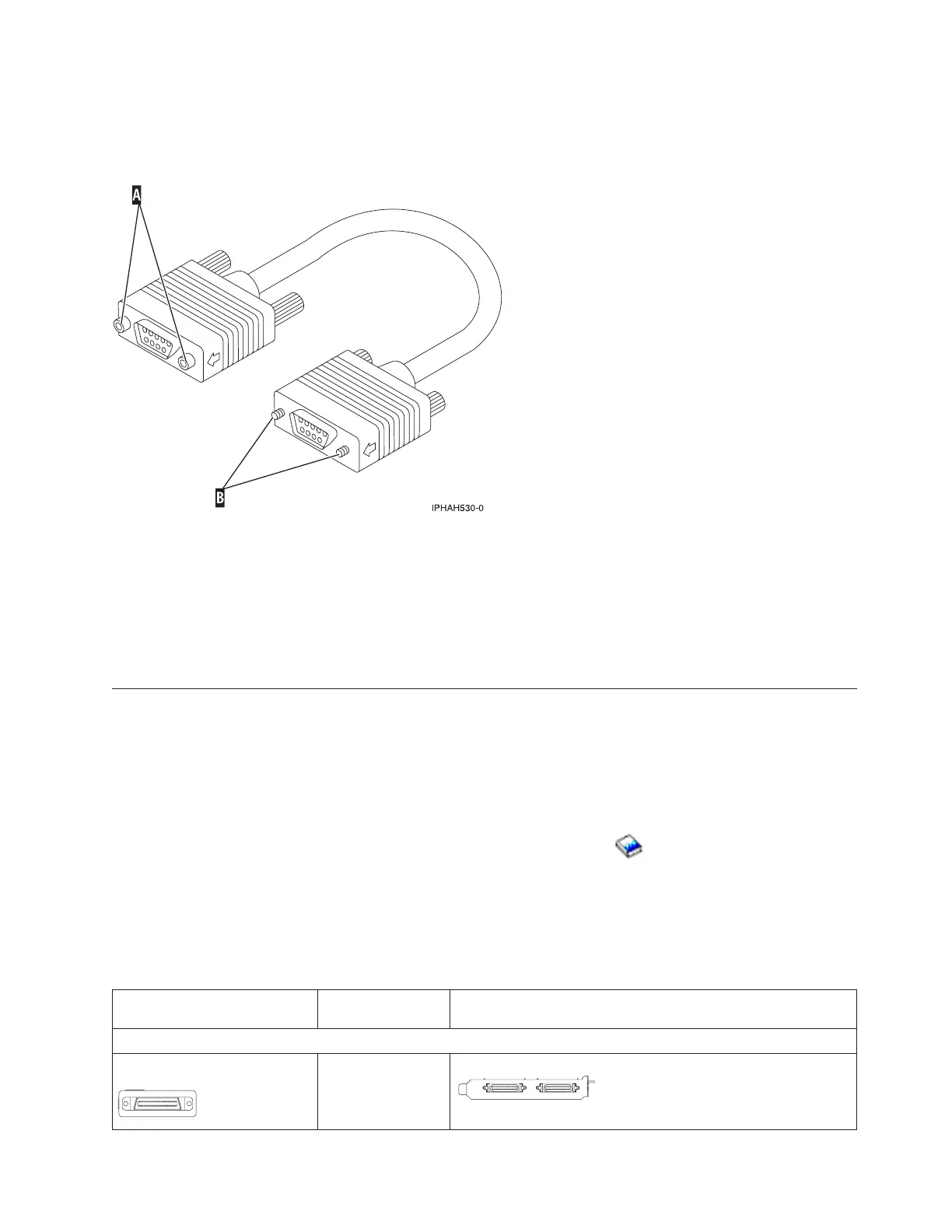

Figure 7. Serial uninterruptible power supply conversion cable
Cabling your server 163
