Back view of a model 7037-A50 server
View the ports and connections on the 7037-A50 server.
Use the following diagram to help you cable a 7037-A50 server. Connections and ports are labeled to
facilitate the setup process.

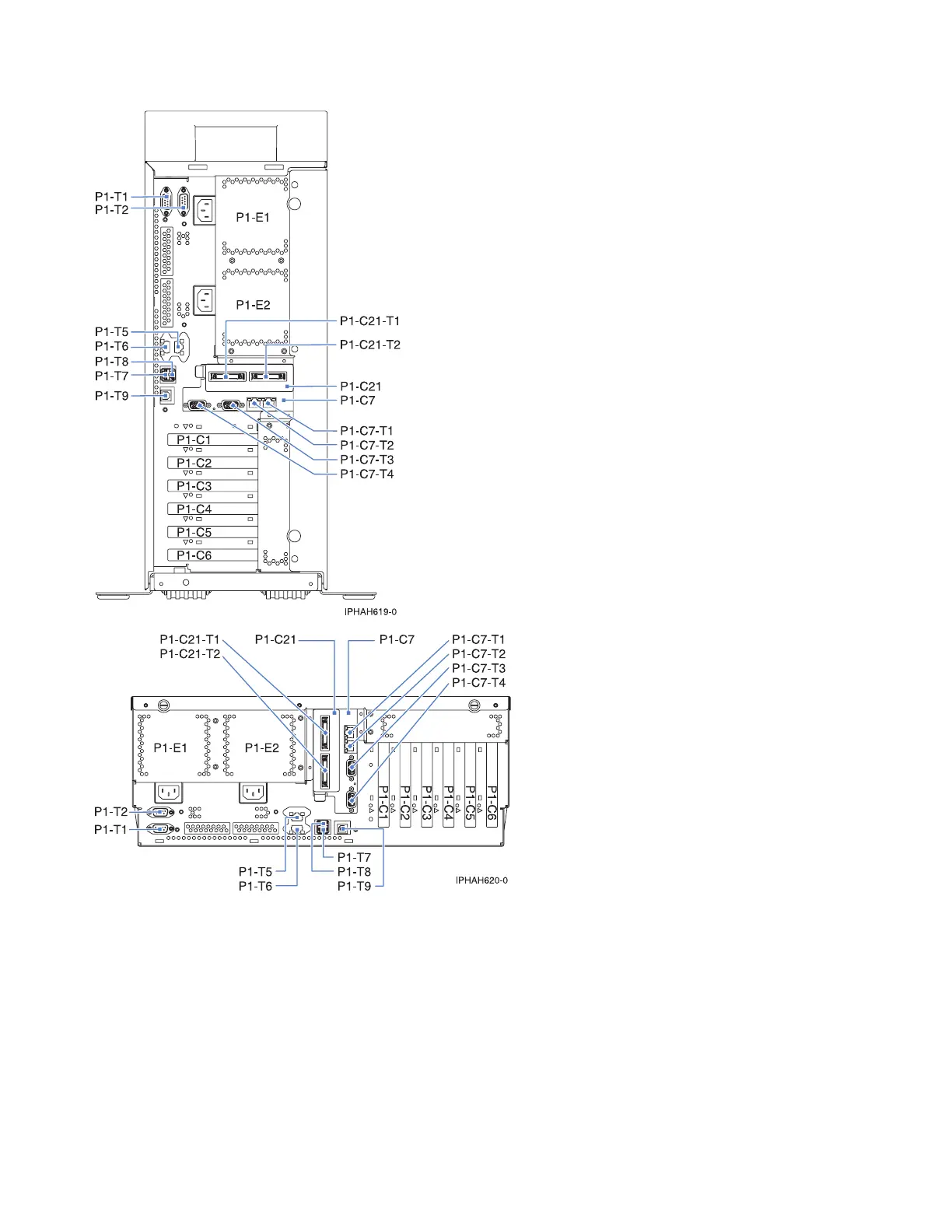

Figure 9. Back views of a model 9405-520 or 9406-520 without the integrated HSL ports (T3/T4)
168 System i and System p: Cabling your server
