After you finish
__ Did you receive a cable hook with your rack shipment?
v No. Proceed to the next item.
v Yes. The cable hook can help manage the server cables in the back of the rack. To install the cable hook, slide

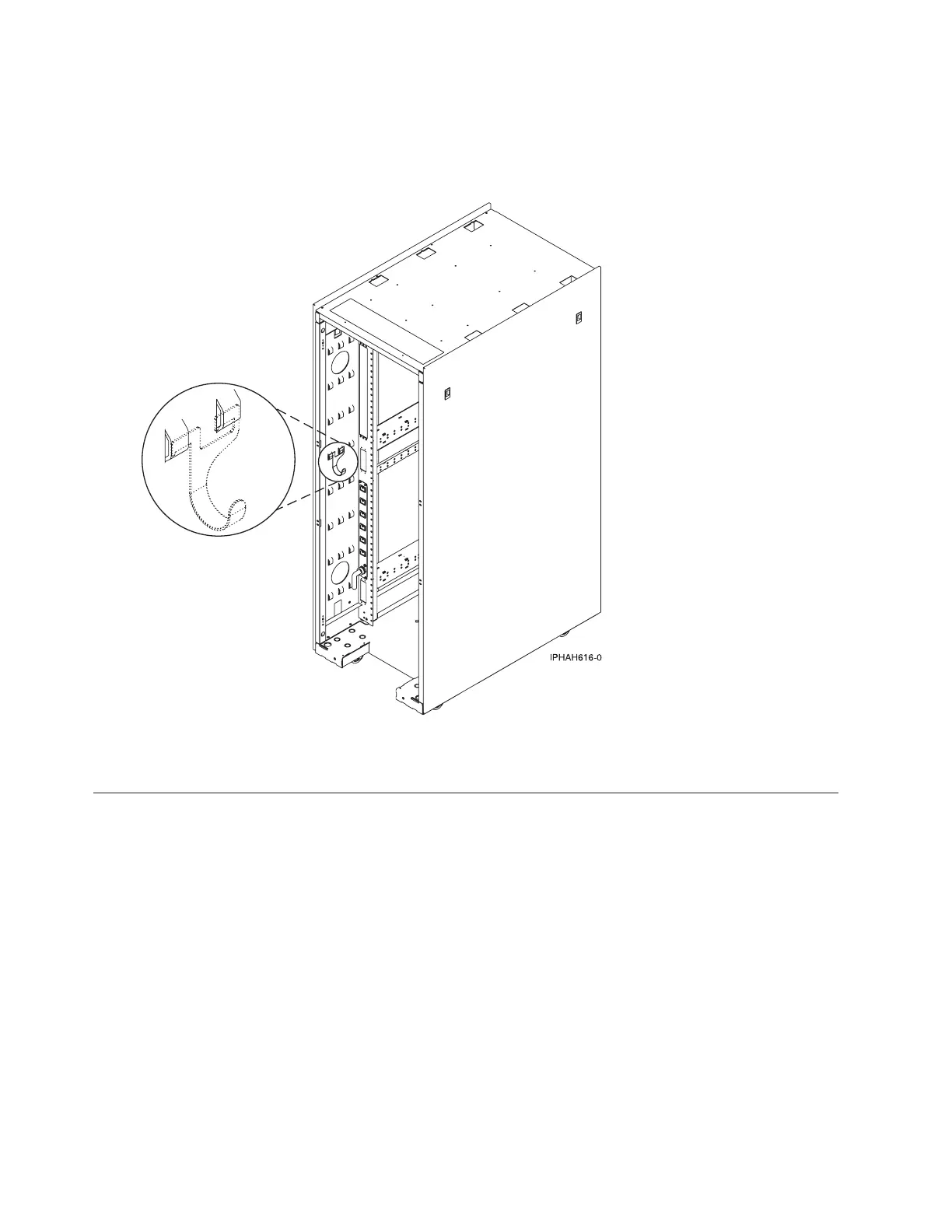

it into the slots located on the back of the rack as shown in the following figure:
__ Return to your initial server setup checklist and complete the next step.
Serial uninterruptible power supply conversion cable
Find out how to connect the serial uninterruptible power supply conversion cable for use with the IBM
System i5 or eServer i5 model or logical partition.
Before you use this feature (feature code 1827), ensure that you have applied any prerequisite software.
For more information, see the IBM eServer Prerequisite Web site:
http://www-912.ibm.com/e_dir/eServerPrereq.nsf
The serial uninterruptible power supply conversion cable changes signals to serial for use with the IBM
System i5 or eServer i5 model or logical partition. This cable is required if you are connecting the server
to an uninterruptible power supply.
To connect the serial uninterruptible power supply conversion cable, do the following:
1. Connect side B (see the following figure) of the serial uninterruptible power supply conversion cable
(with the external threads) to service processor communications port 2 on the back of your system.
For back views of the 510, 520, and 550 models, see References.
162 System i and System p: Cabling your server
To Next Page
