Connecting the power cords

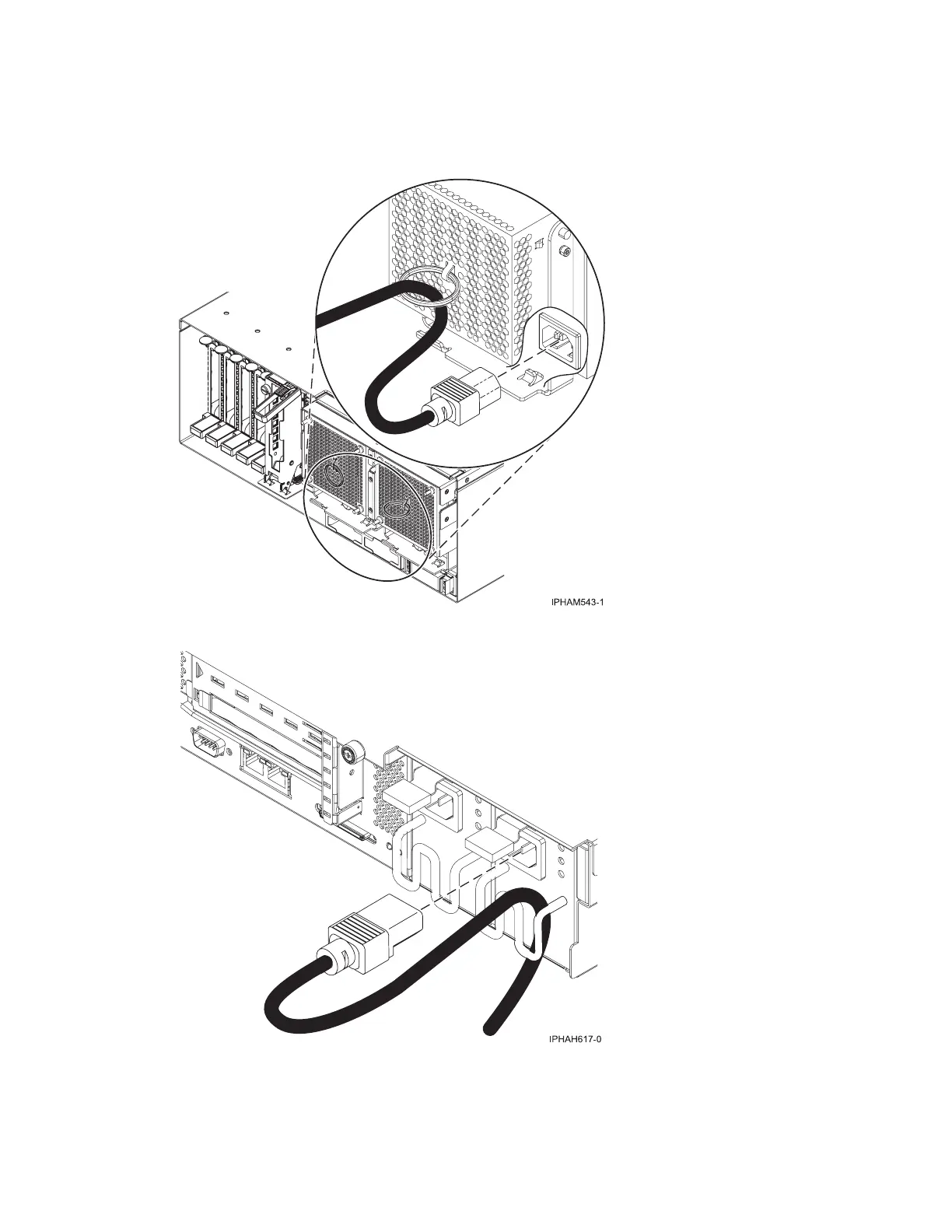

__ If your server is equipped with a retention ring, route the power cord through the ring before you plug it
into the back of the server. See the following figure as an example:
__ If your server is equipped with a retention bracket, route the power cord under the bracket before you
plug it into the back of the server. See the following figure as an example:
__ Plug the power cords into the system, display, and attached devices.
Cabling your server 155
