After you finish
__ Did you receive a cable hook with your rack shipment?
v No. Proceed to the next item.

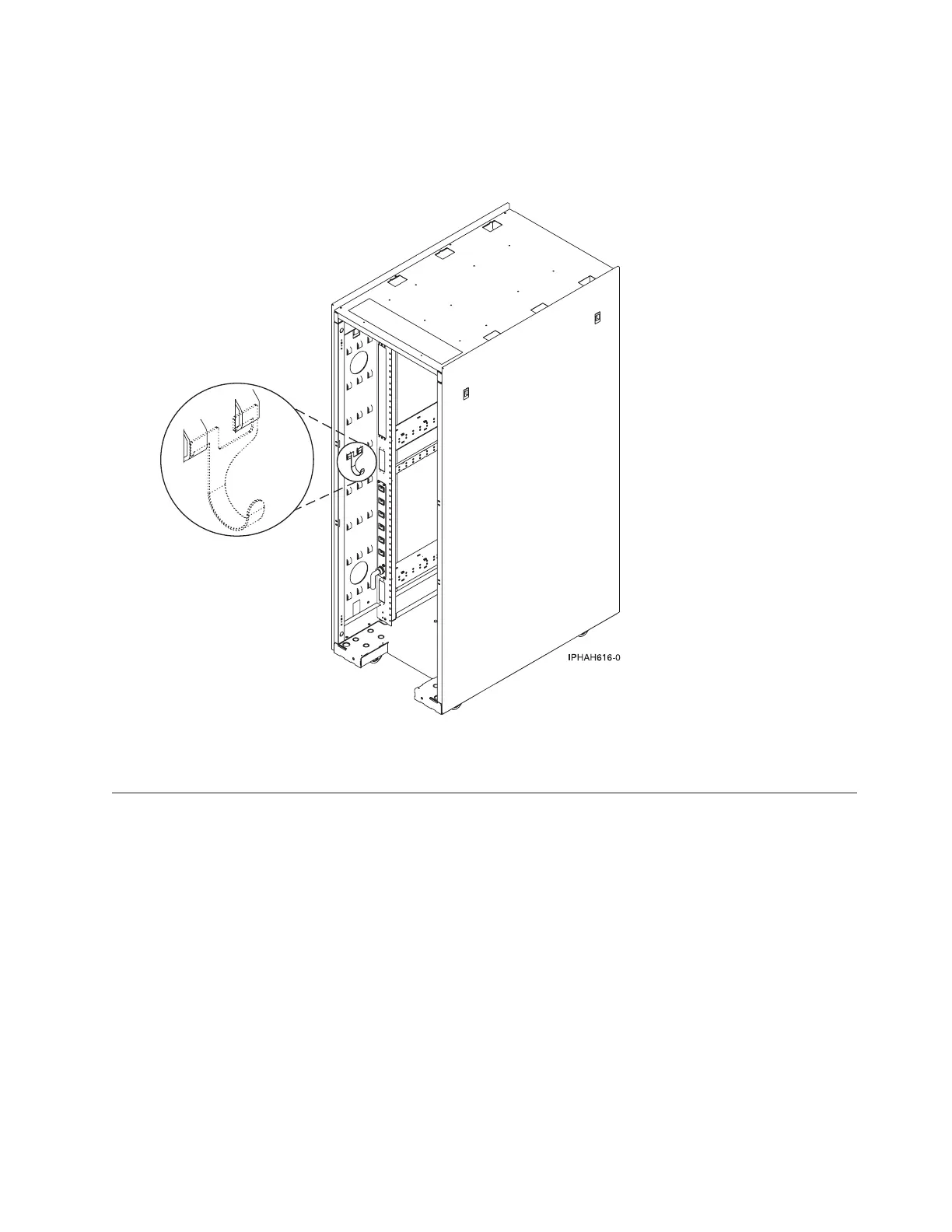

v Yes. The cable hook can help manage the server cables in the back of the rack. To install the cable hook, slide
it into the slots located on the back of the rack as shown in the following figure:
__ Return to your initial server setup checklist and complete the next step.
Cabling your 7047-185 workstation
For a graphical representation of the slots and connectors that are referred to in this topic, see the back
view of the model.
Attention: This product is equipped with a three-wire power cable and plug for the user’s safety. Use
this power cable with a properly grounded electrical outlet to avoid electrical shock.
Complete the following tasks to cable your system unit:
Before you begin
__ If you have hardware features that are not installed, install them now. See Installing features and replacing parts
for instructions.
Connecting the power cords
__ Connect the system’s power supply to a power source.
Cabling your server 75
