Adapter

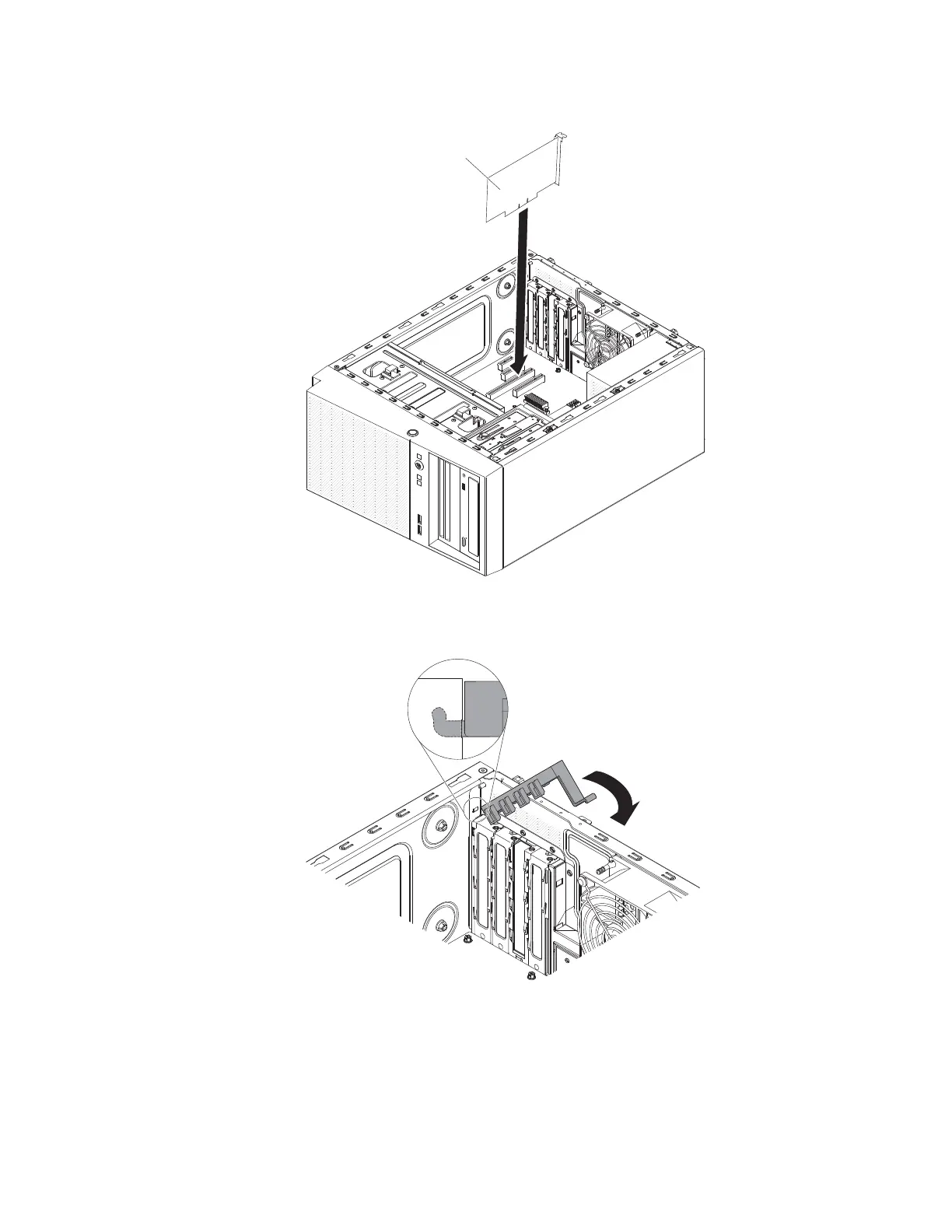

16. Position the rear adapter retention bracket so that the hole in one of the hinge
points is aligned with the hinge pin on the chassis; then, place the hinge pin
through the hole on the chassis.
17. Rotate the rear adapter retention bracket into place so that the hole in the
opposite hinge point snaps into place over the hinge pin on the chassis.
18. Connect any required cables to the adapter. Route the cables so that they do
not block the flow of air from the system fan.
19. Install the air duct.
20. Install the side cover (see “Installing the side cover” on page 49).
21. Stand the server back up in its vertical position.
