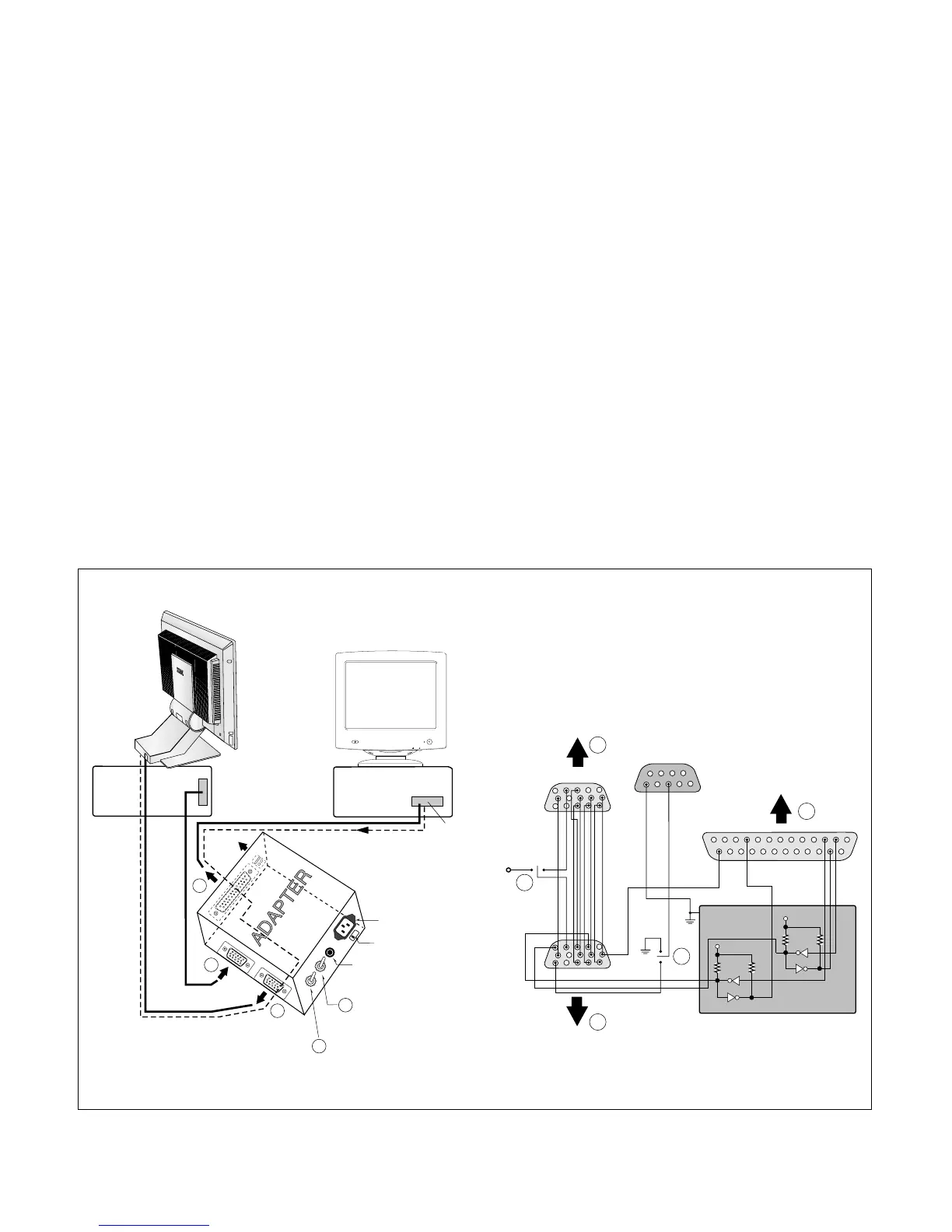

Figure 1. Cable Connection
All adjustment are thoroughly checked and corrected
when the monitor leaves the factory, but sometimes
several minor adjustment may be required.
Adjustment should be following procedure and after
warming up for a minimum of 10 minutes.
Alignment appliances and tools.
- IBM Compatible PC
- Programmable Signal Generator.
(eg. VG-819 made by Astrodesign Co.)
- E(E)PROM with each mode data saved.
- Alignment Adapter and Software.
1. Adjustment for Factory Preset Mode
1) Run alignment program for LI507N on the IBM
compatible PC.
2) Select EEPROM all clear command and Enter.
3) Display cross hatch pattern at Mode 1.
4) Select COMMAND PRESET START command.
5) Select FOS DEFAULT command and Enter.
6) Press "Y" key, it will automatically save all FOS data
to EEPROM.
2. Adjustment for White Balance
1) Display color 0,0 pattern at Mode 13.
2) Set External Bright to MAX position and Contrast to
MAX Position.
3) Select PRESET START
→ BIAS CAL command
and Enter.
4) No attempt to manually adjust, BIAS data is auto-
matically adjusted and saved to the EEPROM.
5) Display color 15,0 pattern at Mode 13.
6) Select DRIVE CAL command and Enter.
7) Color 2 (7200K) and Color 3 (9300K) are
automatically adjusted and saved to the EEPROM.
8) Select PRESET EXIT command and Enter.
3. DDC Data Write Procedure
1) Use this procedure only when there is some
probelm on EDID data.
2) Select EEPROM → EDID Write command and
Enter.
3) This will write the EDID data to EEPROM.
To Next Page
