TFT Panel
TFT LCD Note
For Model 560, use only the TFT 1 LCD.
For Model 560E:
– When replacing the entire LCD assembly,
use only the TFT 2.
– When replacing the an individual LCD FRU,
use either the TFT 1 or the TFT 2
depending on what the other LCD FRUs in
the assembling are using.

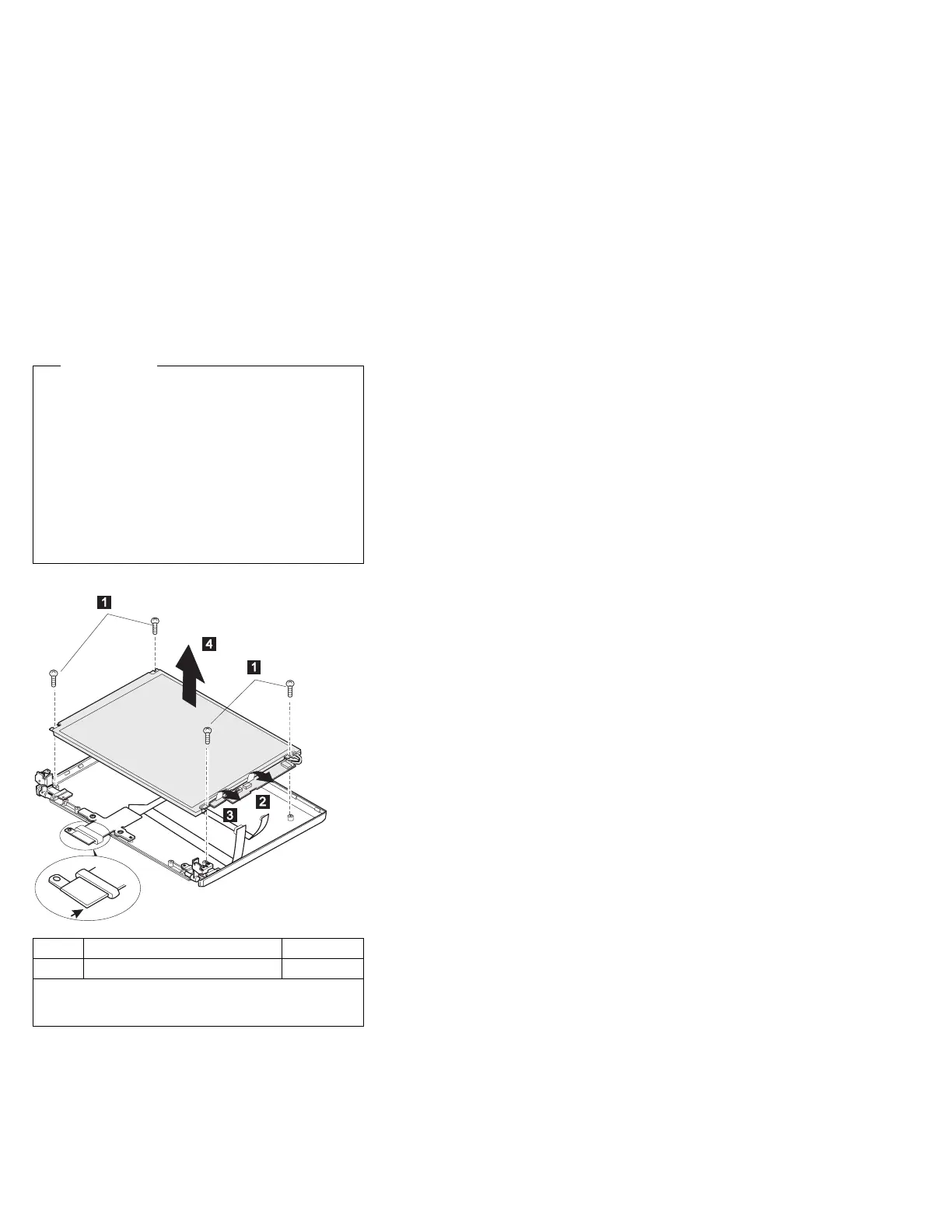

To distinguish the TFT 1 panel from the TFT 2
panel, note the shape of its cable, shown by the
arrow in the circle.
TFT 1 (P/N 12J1600)
Step Size (Quantity) Torque
.1/ M 2.5 x 6 mm (4) 3.0 kgcm
Note: Make sure you use the correct screw and tighten it to
the torque specified. Do not use the screw that you removed,
use a new screw.
176 IBM Mobile Systems HMM
