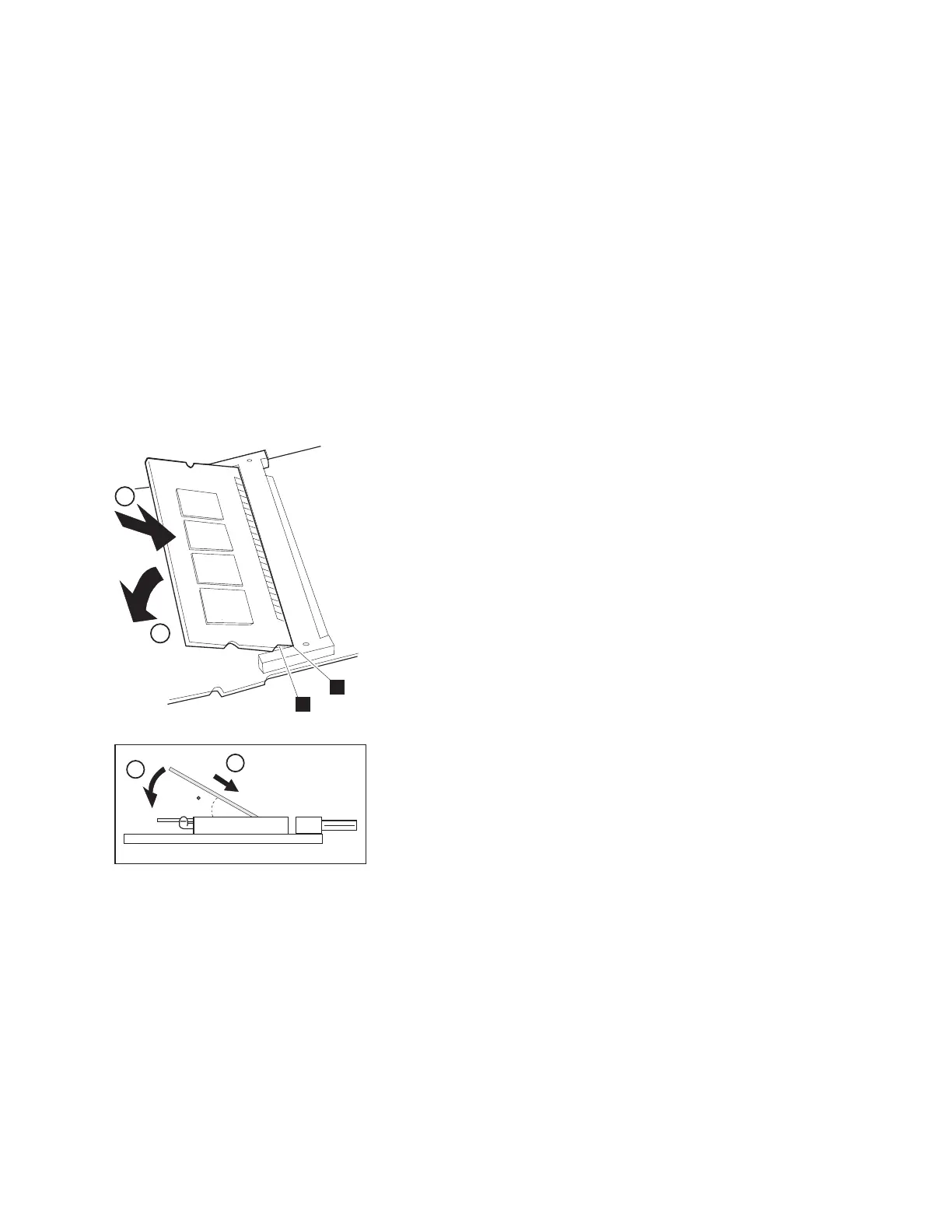

Note: When installing the DIMM, do the following:
1. Find the notch .1/ on the side of the DIMM.
2. With the notched end of the DIMM toward the
right side of the socket .2/, insert the DIMM,
at an angle of approximately 20°, into the
socket; then press it firmly.
3. Pivot the DIMM until it snaps into place.
1
2
1
2
2
1
20
Side View
ThinkPad 760 (9546, 9547) 255
