.12/ Move the front IR unit in its location and make it free
to disconnect the DIMM adapter card connector easily.

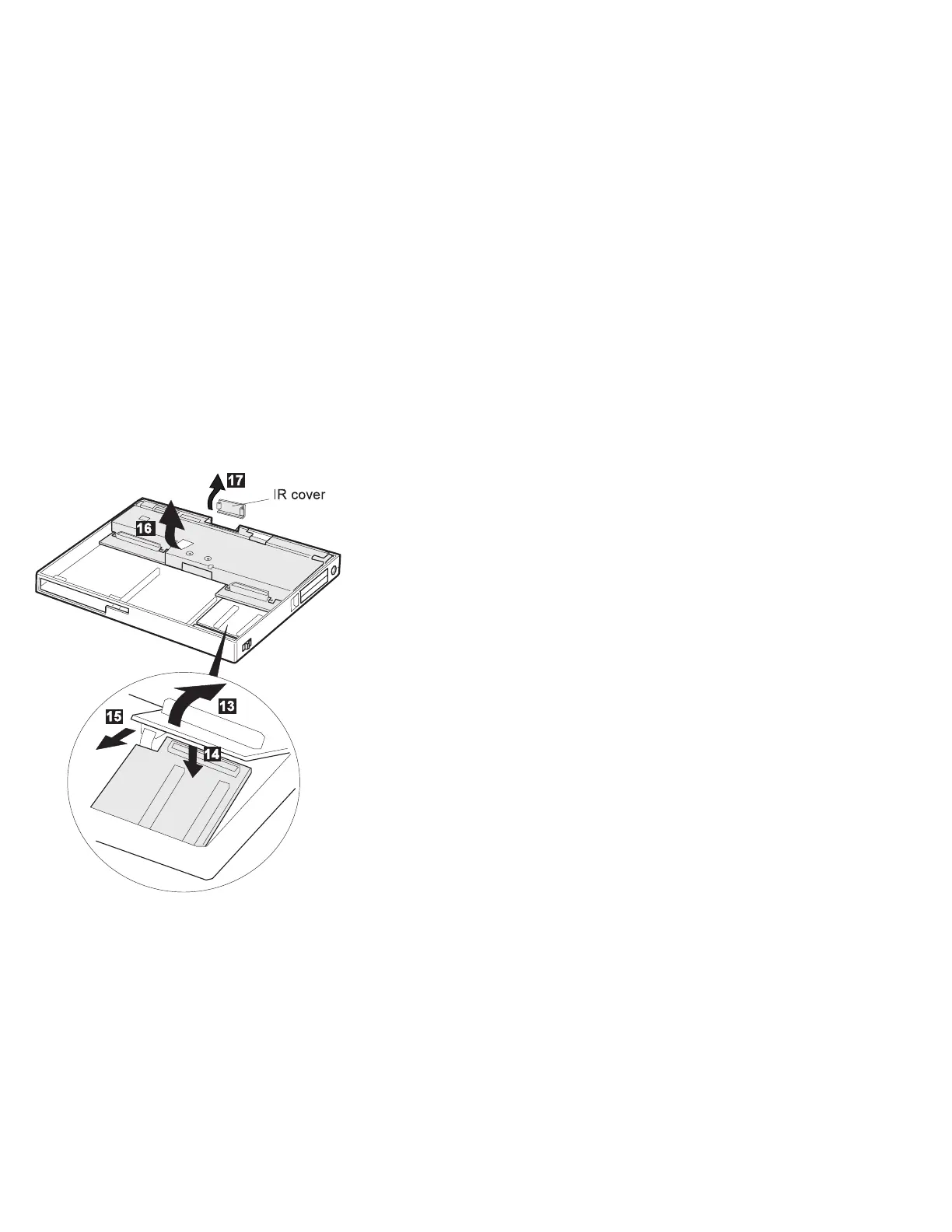

Note: Raise the system board assembly a bit .13/ to
disconnect the DIMM adapter card in step .14/;
then remove the DIMM adapter. Be careful not to
damage the IR flexible cable under the DIMM
adapter card. Then remove the IR flexible cable in
step .15/.
When replacing:
Make sure that the connector of the DIMM adapter
card is connected firmly. Loose or wrong
connection causes the memory error.
472 IBM Mobile Systems HMM
