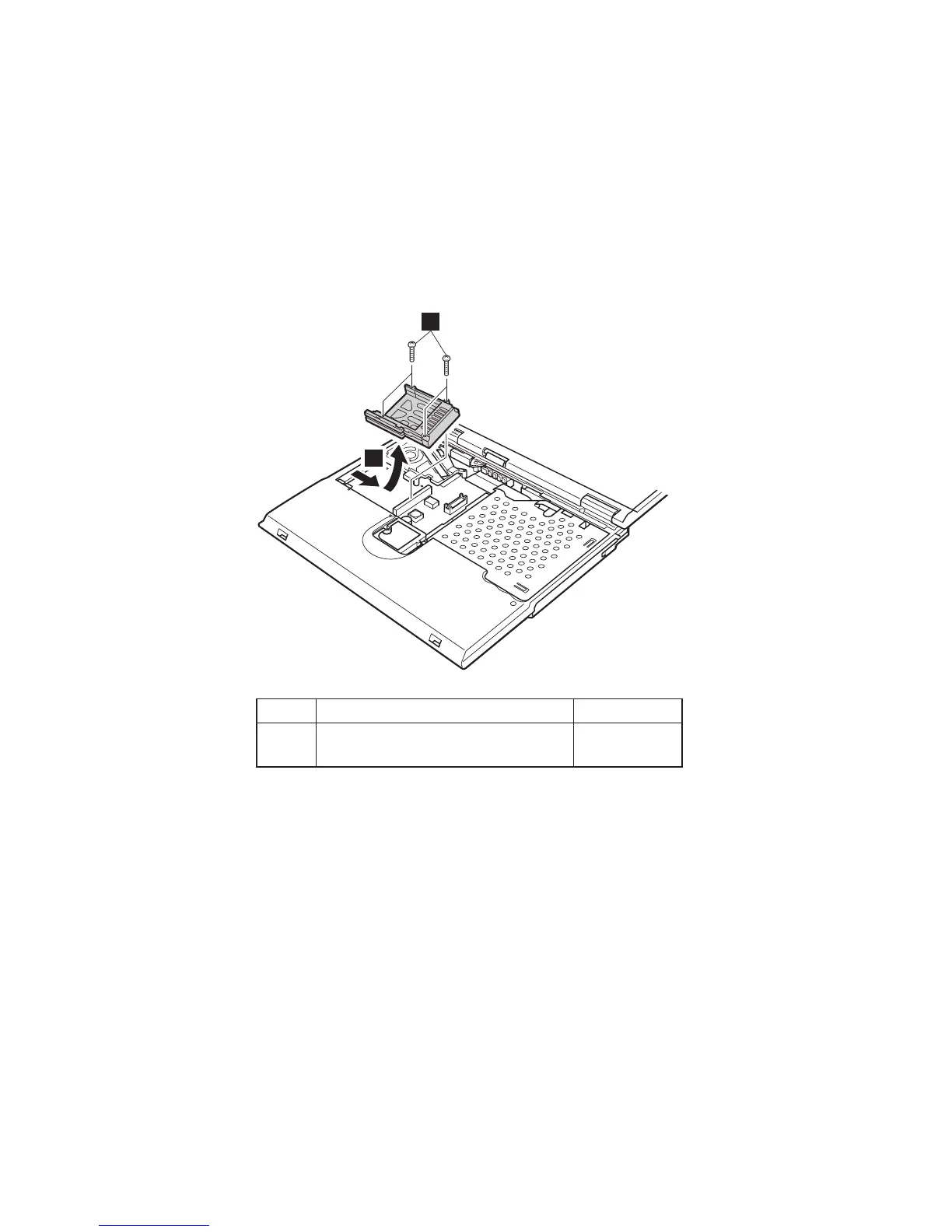

1140 PC Card slot assembly
For T20, T21, T22 series
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 60
v “1020 Backup battery” on page 61
v “1030 Hard-disk drive” on page 63
v “1070 Ultrabay 2000 device” on page 73
v “1080 Keyboard” on page 74
v “1090 Keyboard CRU insulator” on page 82
1
2
Step Screw (quantity) Torque
1 M2 × 13.5 mm, nylon-coated (4) 0.245 Nm
(2.5 kgfcm)
(continued)
Removing and replacing a FRU
100 ThinkPad T20, T21, T22, T23 (MT 2647/2648)
