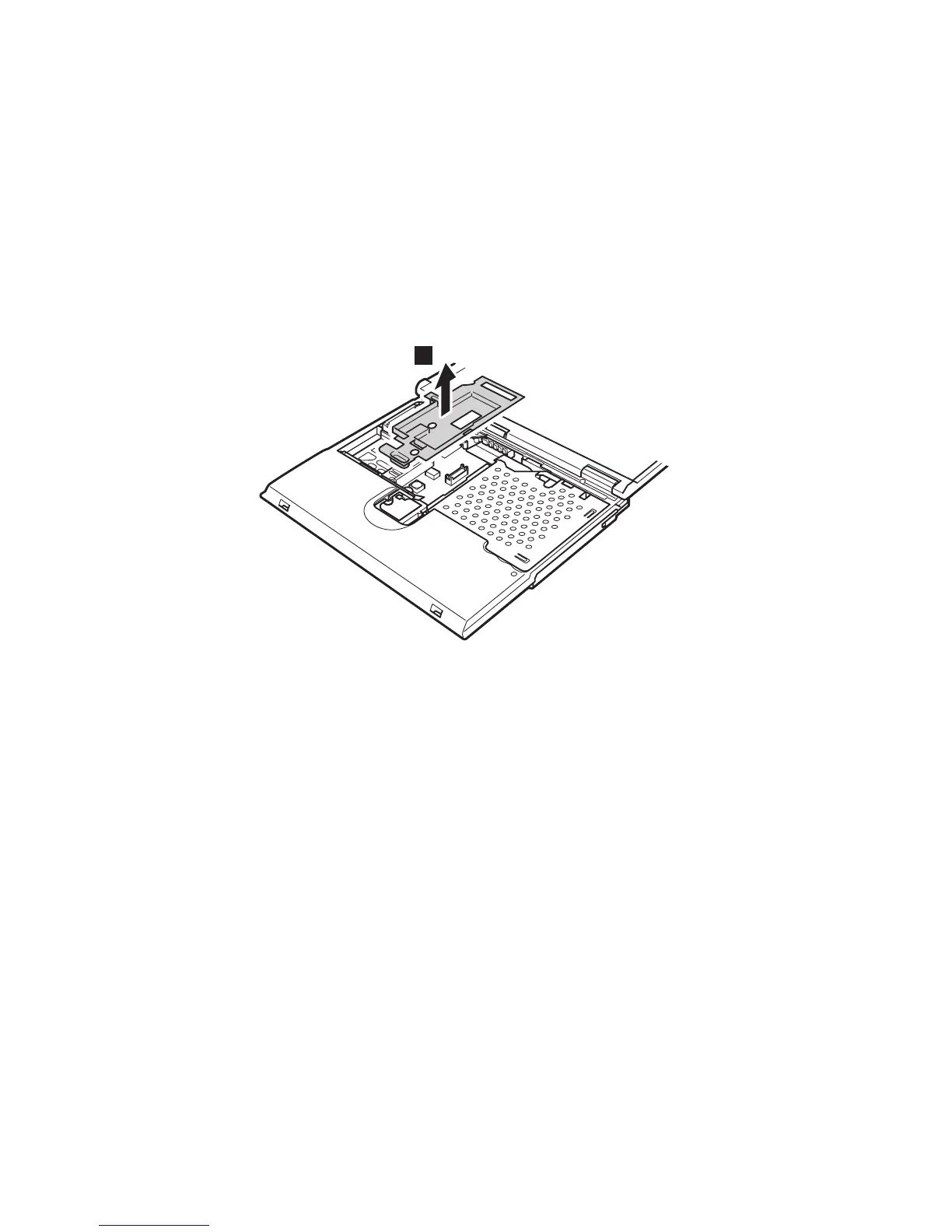

1090 Keyboard CRU insulator
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 60
v “1020 Backup battery” on page 61
v “1030 Hard-disk drive” on page 63
v “1070 Ultrabay 2000 device” on page 73
v “1080 Keyboard” on page 74
Note: The shape of the keyboard CRU insulator varies
from model to model. In some models, the shape
might be slightly different from the insulator in this
figure.
1
Removing and replacing a FRU
82 ThinkPad T20, T21, T22, T23 (MT 2647/2648)
