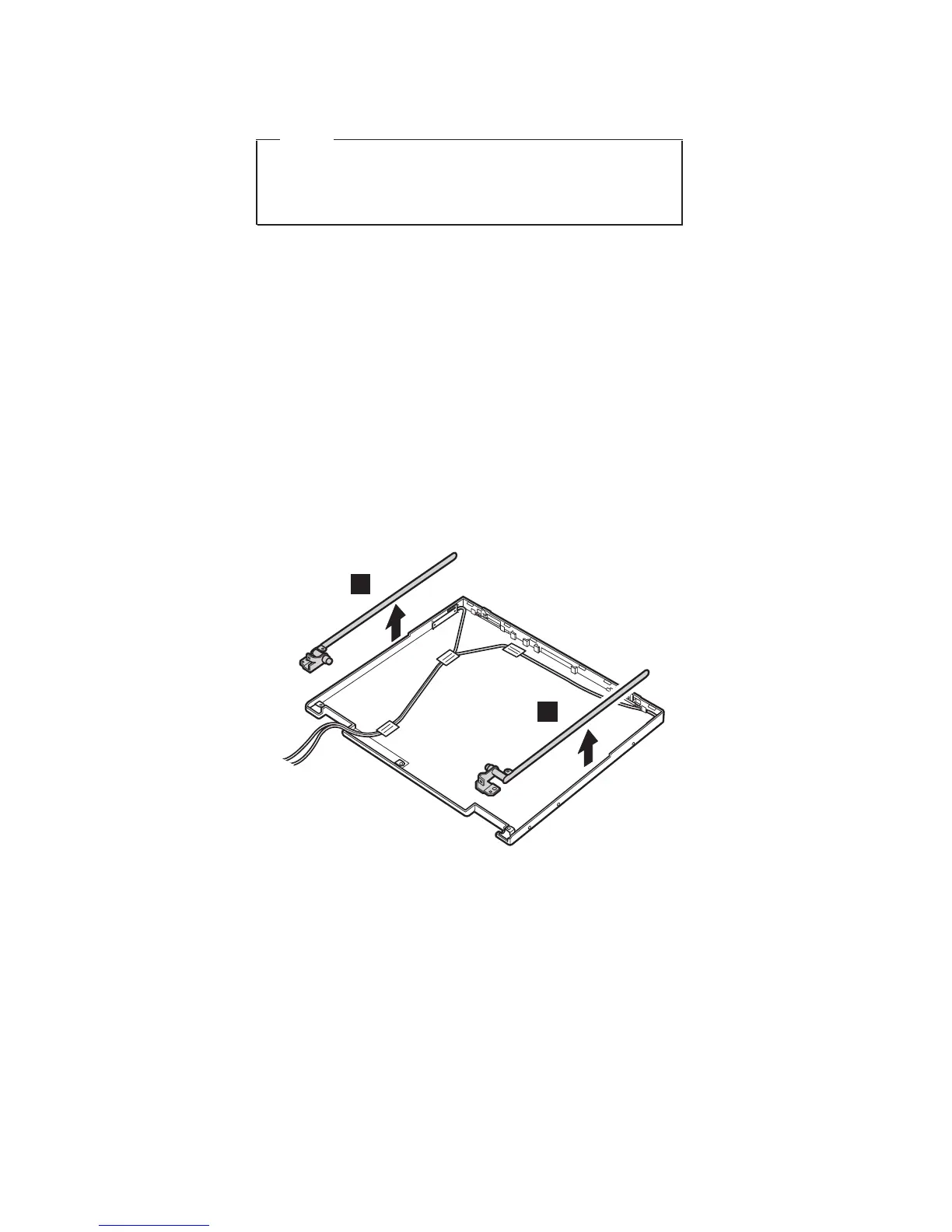

2050 Antenna assembly
Note
This section is only for MT2647-xFx, xJx, xLx, xNx,
xSx. Other models do not have the antenna
assembly.
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 60
v “1020 Backup battery” on page 61
v “1030 Hard-disk drive” on page 63
v “1070 Ultrabay 2000 device” on page 73
v “1080 Keyboard” on page 74
v “1090 Keyboard CRU insulator” on page 82
v “1100 Hinge cover” on page 83
v “1110 Keyboard bezel” on page 88
v “1120 Fan assembly” on page 94
v “2010 LCD assembly” on page 119
v “2020 Front bezel” on page 122
v “2030 Inverter card” on page 123
v “2040 LCD panel” on page 124
1
1
(continued)
Removing and replacing a FRU
128 ThinkPad T20, T21, T22, T23 (MT 2647/2648)
