Note: Step 5 to step 10 are common for T20, T21,
T22 and T23 series.
Note for step 5

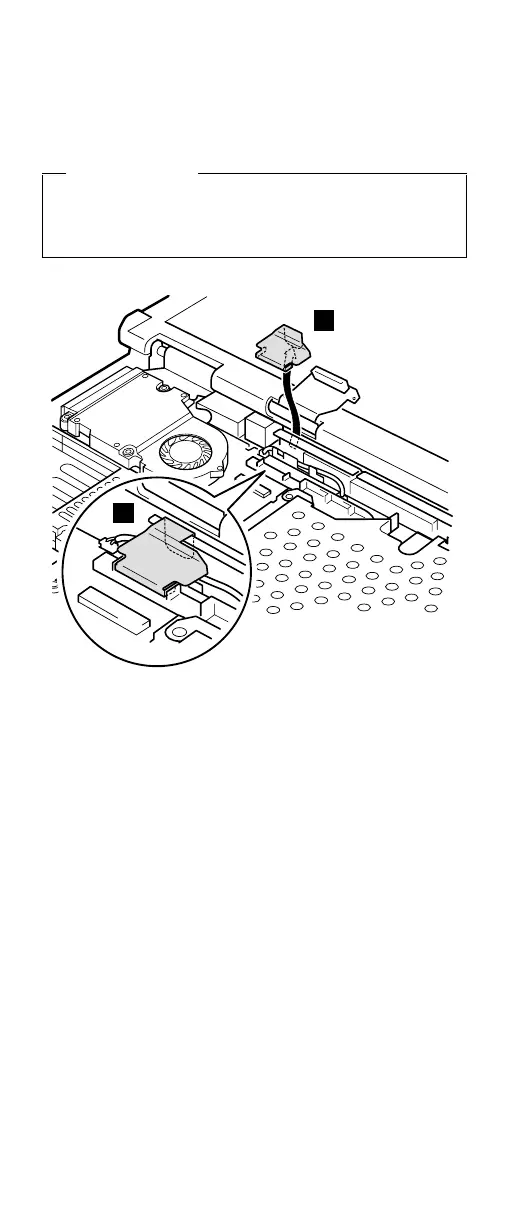

Step 5 in the this figure is only for the models with
14.1-in. XGA LCD or 14.1-in. SXGA+ LCD. Other
models do not have the FPC bracket (5).
5
a
When installing: Make sure that the FPC bracket is firmly
attached as shown in the figure a.
(continued)
Removing and replacing a FRU
110 ThinkPad T20, T21, T22, T23 (MT 2647/2648)
