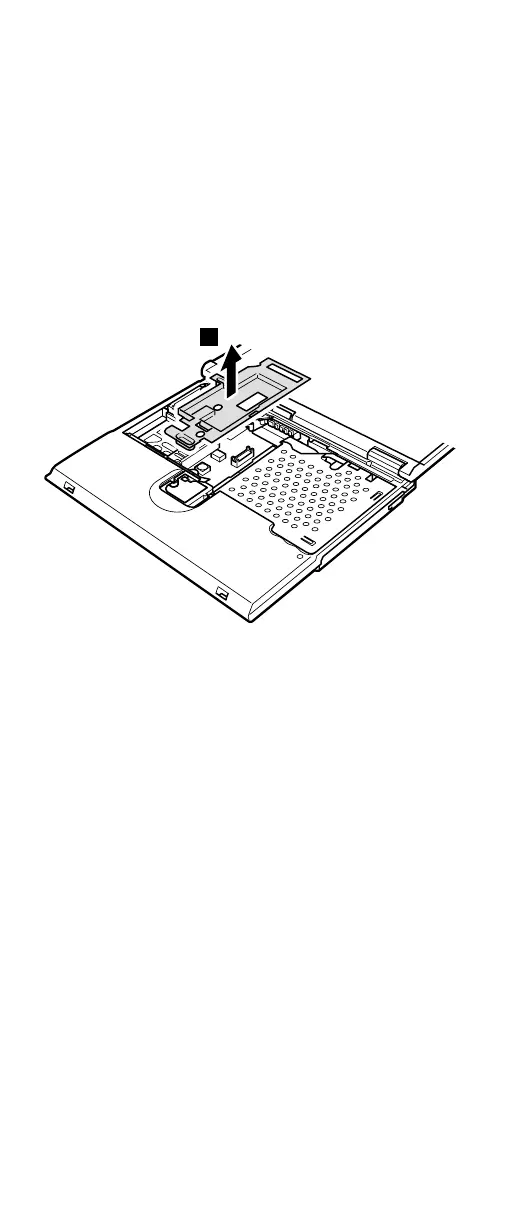

1090 Keyboard CRU insulator
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 58
v “1020 Backup battery” on page 59
v “1030 Hard-disk drive” on page 61
v “1070 Ultrabay 2000 device” on page 71
v “1080 Keyboard” on page 72
Note: The shape of the keyboard CRU insulator vary from
model to model. In some models, the shape might
be slightly different from the insulator in this figure.
1
Removing and replacing a FRU
80 ThinkPad T20, T21, T22, T23 (MT 2647/2648)
