IBM THINKPAD T22 - For T23 Series

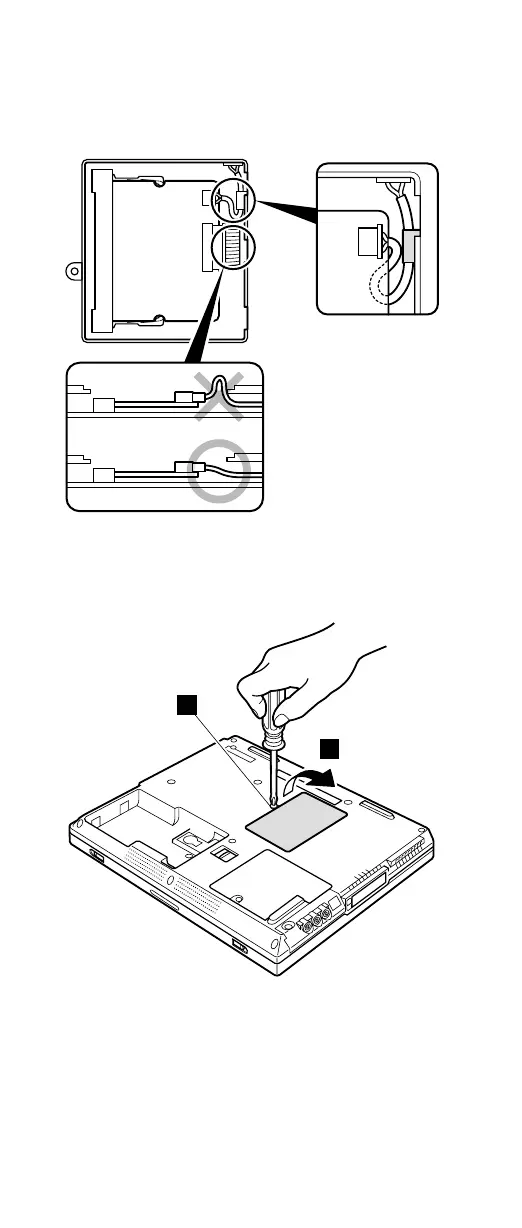

When installing: Make sure not to pinch the connector
cable when re-installing the Mini PCI
adapter.
For T23 series
Note: Loosen the screw 1, but do not remove it.
2
1
(continued)
Removing and replacing a FRU
66 ThinkPad T20, T21, T22, T23 (MT 2647/2648)
