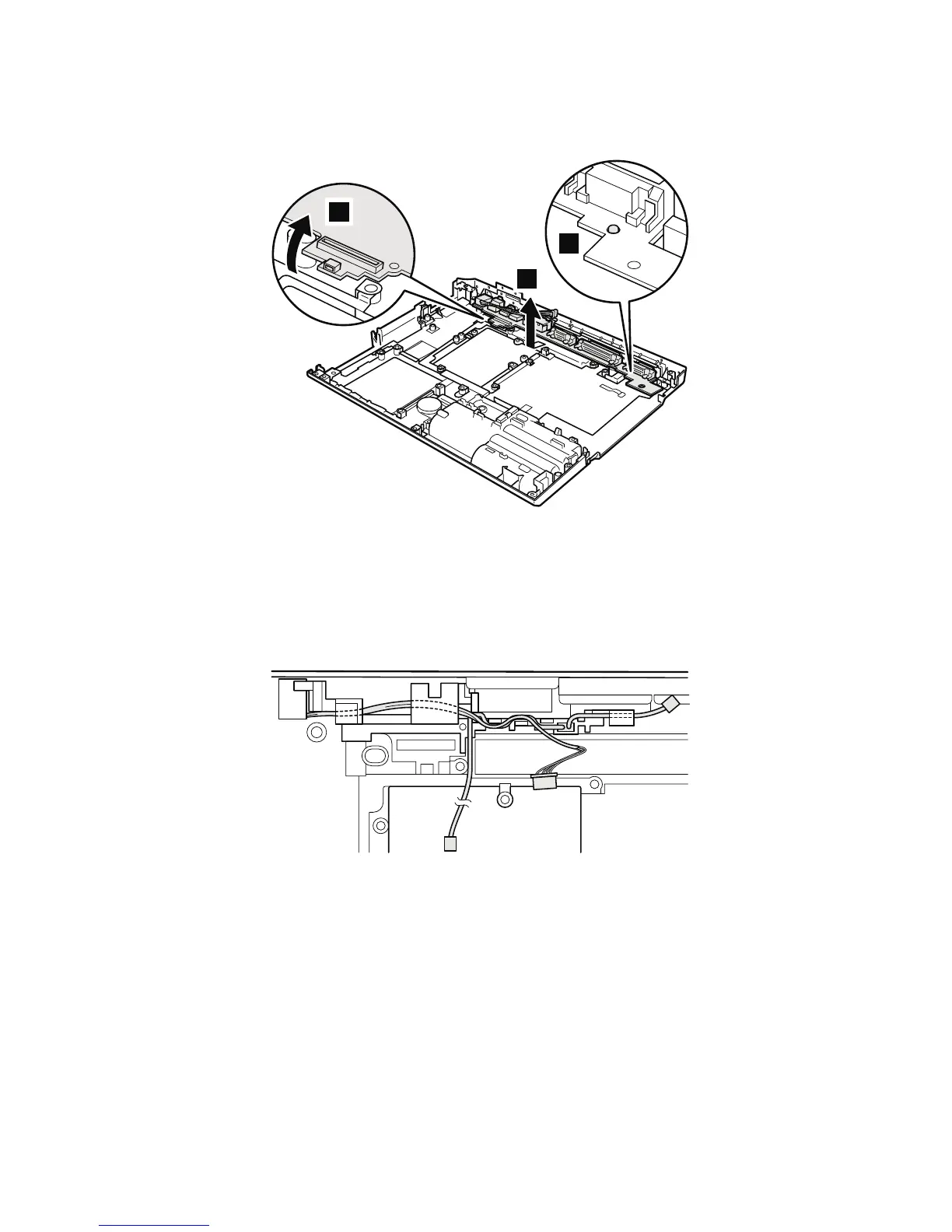

Lift the front side of the I/O card slightly 7 to release the
guide hole a of the card , and then remove the card in
the direction of the arrow 8.
7
8
a
Cable routing: When installing the I/O card, make sure
that you have attached the cable
connector and the cable holder firmly as
shown in the figure. Otherwise you will not
be able to install the system board
properly.
Removing and replacing a FRU
ThinkPad T30 113
