2010 LCD front bezel
For access, remove these FRUs, in order:
v “1010 Battery pack” on page 61
v “1020 Ultrabay Plus device” on page 62
v “1050 Backup battery” on page 67
v “1070 Mini PCI adapter” on page 71
v “1080 Communication daughter card (CDC)” on page 74
v “1030 Hard-disk drive” on page 63
v “1090 Keyboard” on page 77
v “1120 Keyboard bezel” on page 87
v “1130 Hinge cover” on page 92
v “1140 LCD assembly” on page 94

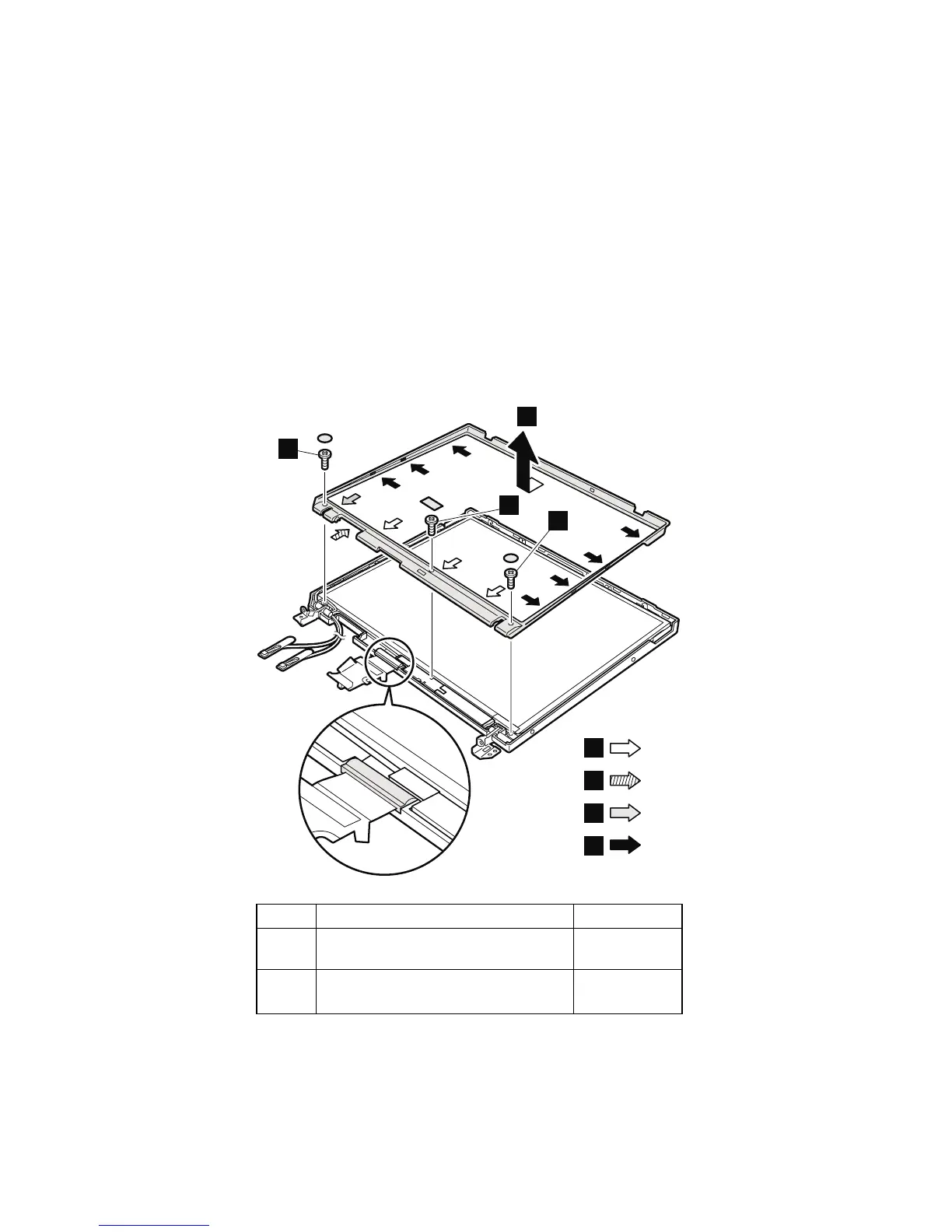

After removing screws 1 and 2, detach all of the
latches 3 to 6 in order.
5
4
3
7
1
6
2
2
Step Screw (quantity) Torque
1 M2 × 4.8 mm, nylon-coated (1) 0.245 Nm
(2.5 kgfcm)
2 M2.5 × 4.8 mm, nylon-coated (2) 0.392 Nm
(4 kgfcm)
When installing: Make sure that all of the latches of the
LCD front bezel are firmly attached to
the LCD cover.
Removing and replacing a FRU
114 ThinkPad T30 (MT 2366, 2367)
