1120 Mini PCI adapter
For access, remove these FRUs in order:
v “1010 Battery pack for 14.1-in. LCD models” on page 71
v “1020 Battery pack for 15.0-in. LCD models” on page 73
v “1040 Hard disk drive” on page 75
v “1060 Keyboard” on page 79
v “1100 Palm rest or Palm rest with fingerprint sensor (for
14.1-in. LCD models)” on page 88
v “1110 Keyboard bezel or Keyboard bezel with fingerprint
sensor (for 15.0-in. LCD models)” on page 91
If the wireless antenna jacks have tabs marked ″MAIN″ or
″AUX″, unplug the jacks by pulling the tabs with your
fingers. If the antenna jacks do not have the tabs, unplug
the jacks by using the removal tool antenna RF connector
(P/N: 08K7159) or pick the connectors with your fingers

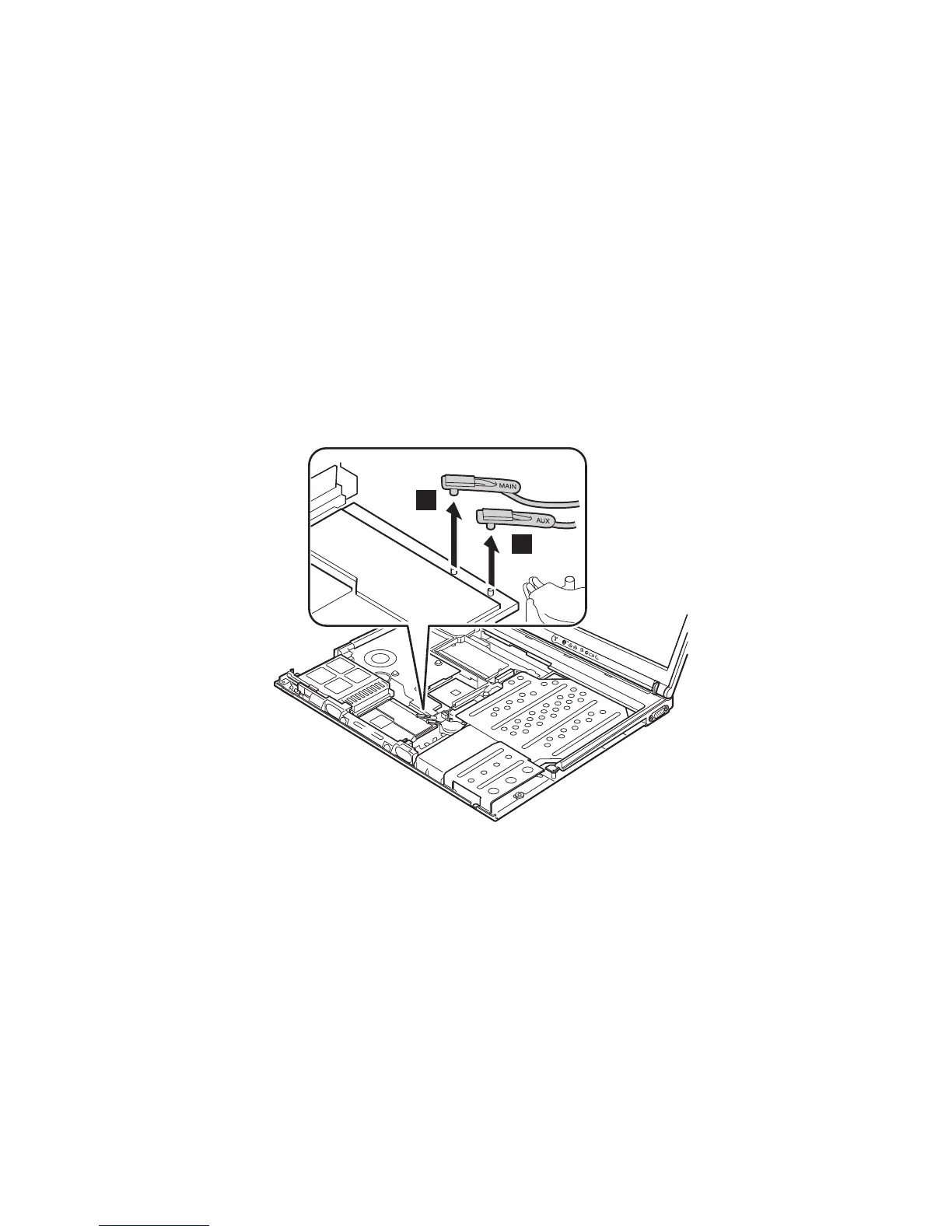

and gently unplug it in direction of the arrow 1 and 2.
1
2
(continued)
Removing and replacing a FRU
ThinkPad T40/T40p, T41/T41p, T42/T42p Series 97
