1250 VGA and Ultrabay Slim device
eject button cable

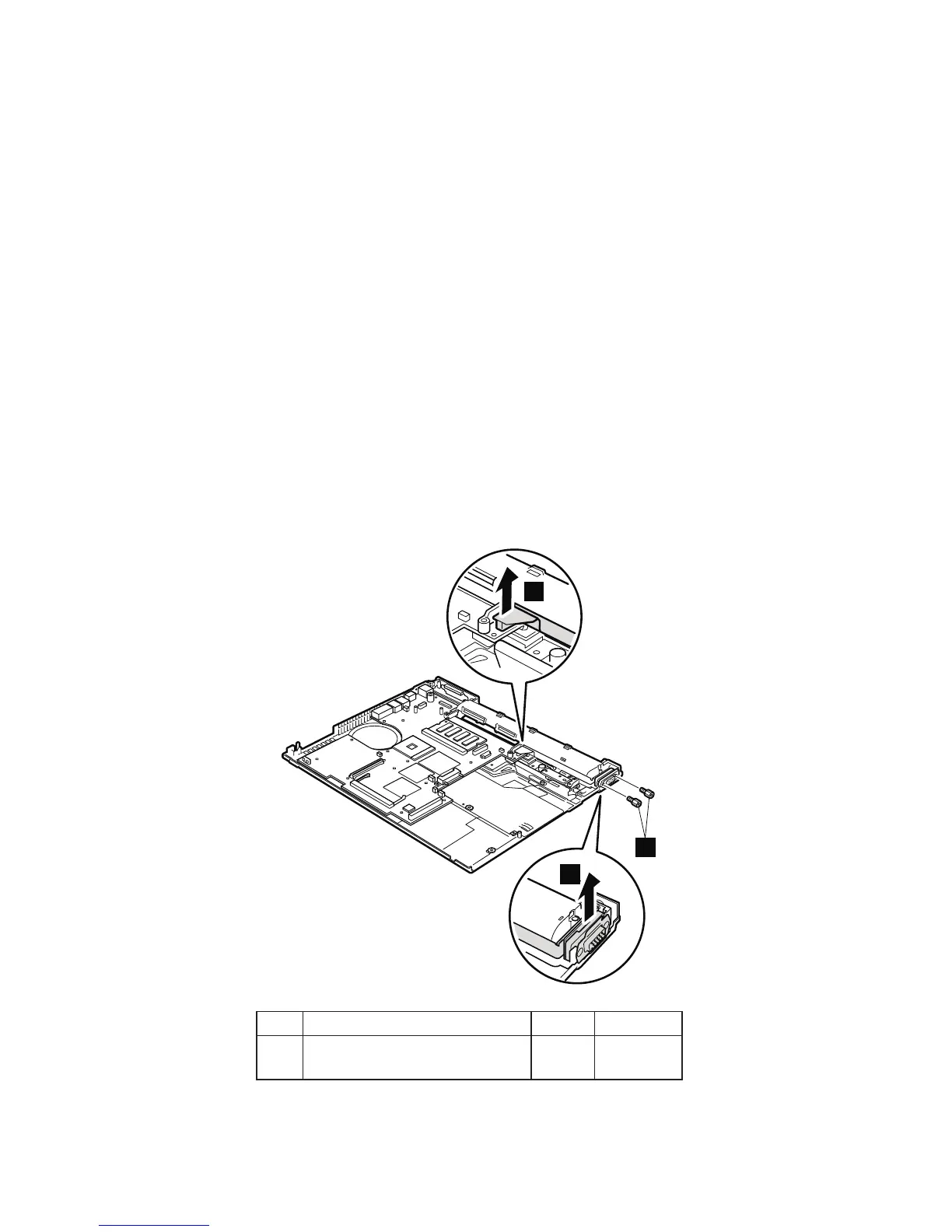

For access, remove these FRUs in order:
v “1010 Battery pack for 14.1-in. LCD models” on page 71
v “1020 Battery pack for 15.0-in. LCD models” on page 73
v “1040 Hard disk drive” on page 75
v “1060 Keyboard” on page 79
v “1100 Palm rest or Palm rest with fingerprint sensor (for
14.1-in. LCD models)” on page 88
v “1110 Keyboard bezel or Keyboard bezel with fingerprint
sensor (for 15.0-in. LCD models)” on page 91
v “1170 Keyboard bezel for 14.1-in. LCD models” on page
112
v “1200 LCD assembly for 14.1-in. LCD models” on page
118
v “1210 LCD assembly for 15.0-in. LCD models” on page
123
v “1230 Ultrabay Slim guide rail assembly for 14.1-in. LCD
models” on page 129
v “1240 Ultrabay Slim guide rail assembly for 15.0-in. LCD
models” on page 131
1
3
2
Step Screw (quantity) Color Torque
2 Hex stud (2) Silver 0.392 Nm
(4
kgfcm)
(continued)
Removing and replacing a FRU
134 T40/T40p, T41/T41p, T42/T42p
