2030 Inverter card for 14.1-in. LCD
models
For access, remove these FRUs in order:
v “1010 Battery pack for 14.1-in. LCD models” on page 71
v “1040 Hard disk drive” on page 75
v “1060 Keyboard” on page 79
v “1090 Bluetooth/Modem daughter card
(BMDC/BMDC-2)” on page 86
v “1100 Palm rest or Palm rest with fingerprint sensor (for
14.1-in. LCD models)” on page 88
v “1120 Mini PCI adapter” on page 97
v “1170 Keyboard bezel for 14.1-in. LCD models” on page
112
v “1200 LCD assembly for 14.1-in. LCD models” on page
118
v “2010 LCD front bezel for 14.1-in. LCD models” on page
153

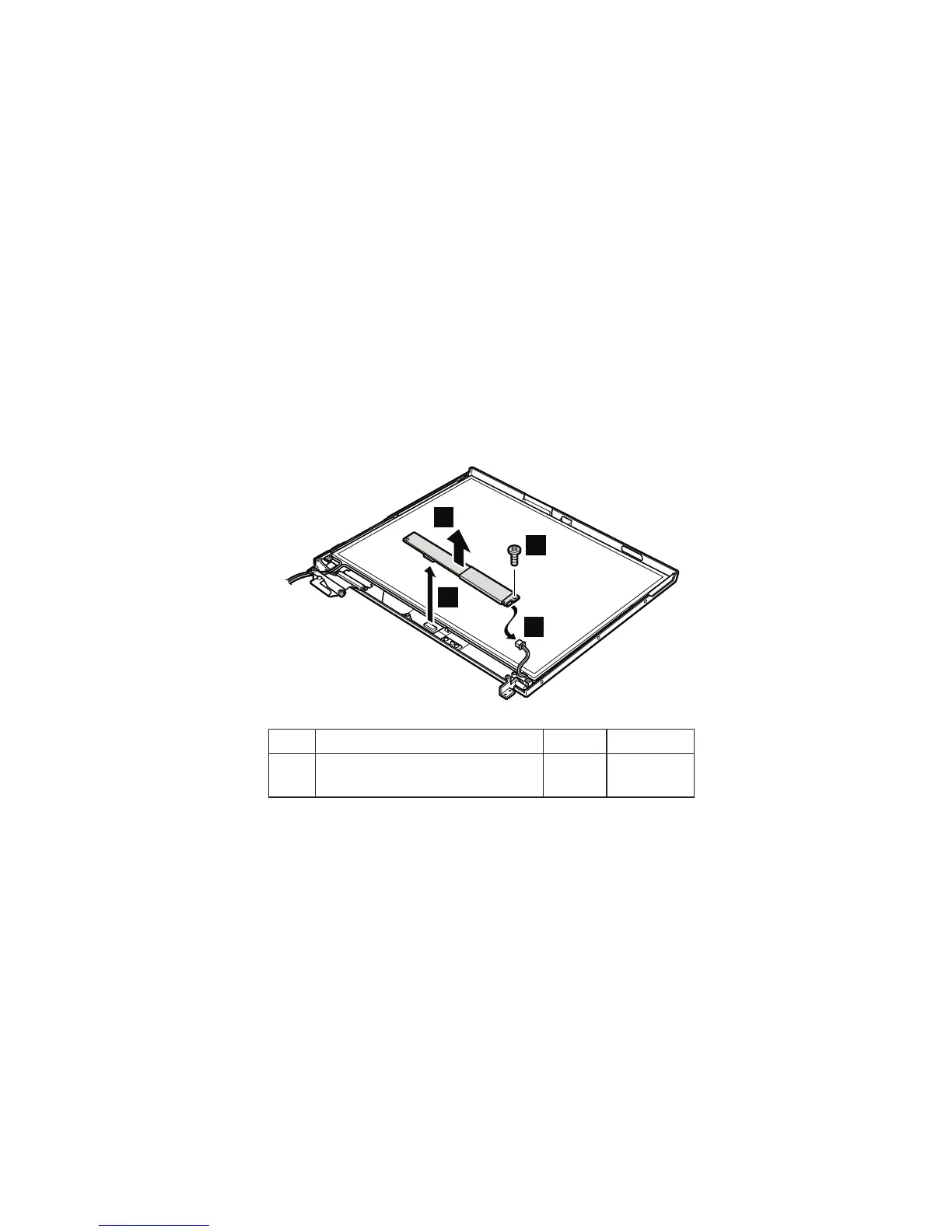

1
2
3
4
Step Screw (quantity) Color Torque
1 M2 × 3 mm, small-head,
nylon-coated (1)
Silver 0.245 Nm
(2.5
kgfcm)
When installing: Make sure that connectors 2 and 3
are firmly attached.
Removing and replacing a FRU
ThinkPad T40/T40p, T41/T41p, T42/T42p Series 157
