ThinkPad Dual-Band 11a/b Wi-Fi Wireless Mini PCI
Adapter, ThinkPad 11a/b/g Wireless LAN Mini PCI
Adapter, or ThinkPad 11b/g Wireless LAN Mini PCI
Adapter

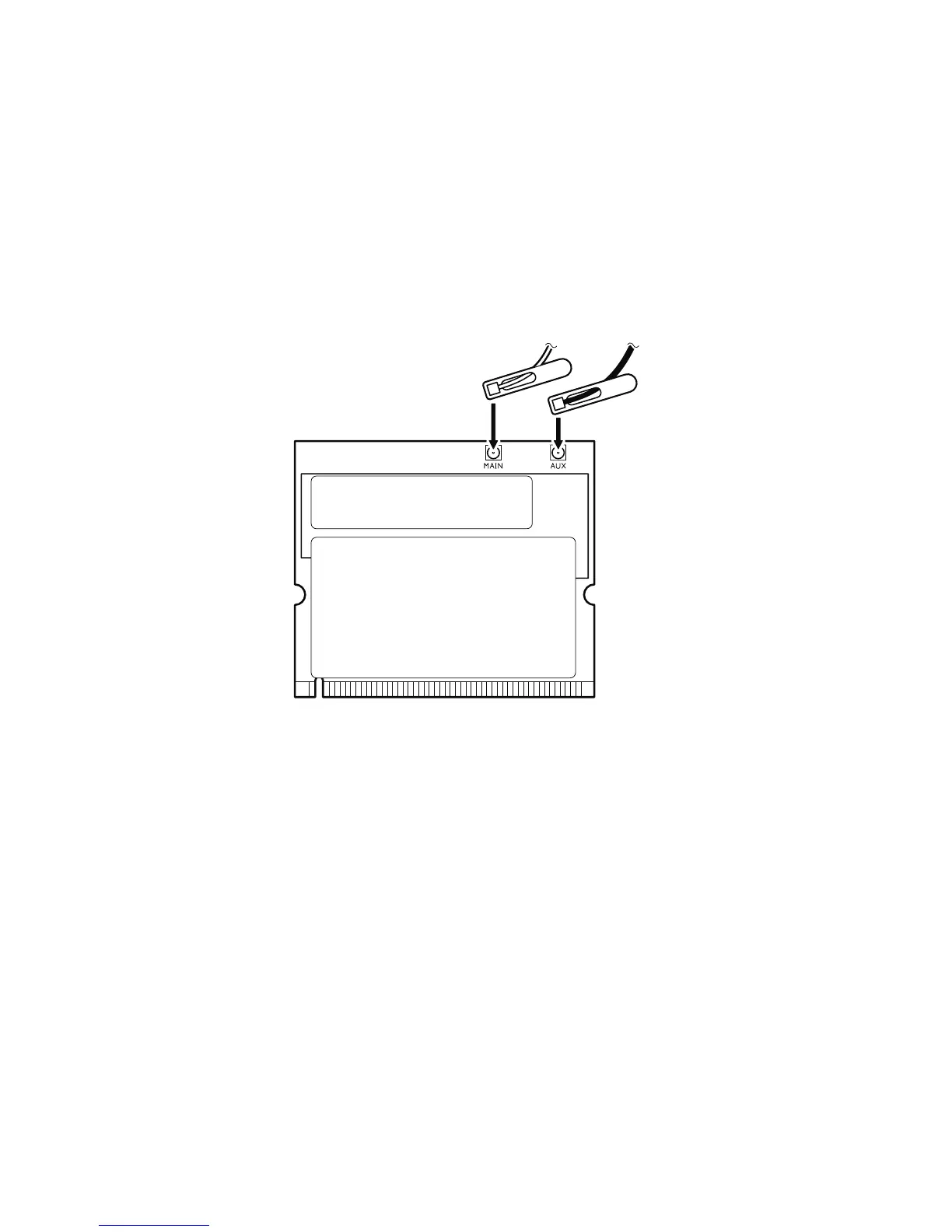

In case of the antenna jacks have the tabs, plug the gray
antenna cable with the tab marked MAIN into jack MAIN,
and the black antenna cable with the tab marked AUX into
jack AUX.
In case of the antenna jacks do not have the tabs, plug the
gray cable to jack MAIN, and the black cable to jack AUX.
MAIN
AUX
Insert the notched end of the card into the socket, and
then press the card firmly. Pivot the card until it snaps into
place. Make sure that it is firmly fixed in the slot and does
not move easily.
Removing and replacing a FRU
100 T40/T40p, T41/T41p, T42/T42p
