Step Screw (quantity) Color Torque
3 M2 × 10 mm, flat-head,
nylon-coated (3)
Black 0.245 Nm
(2.5
kgfcm)
4 M2 × 3 mm, small-head,
nylon-coated (3)
Silver 0.245 Nm
(2.5
kgfcm)

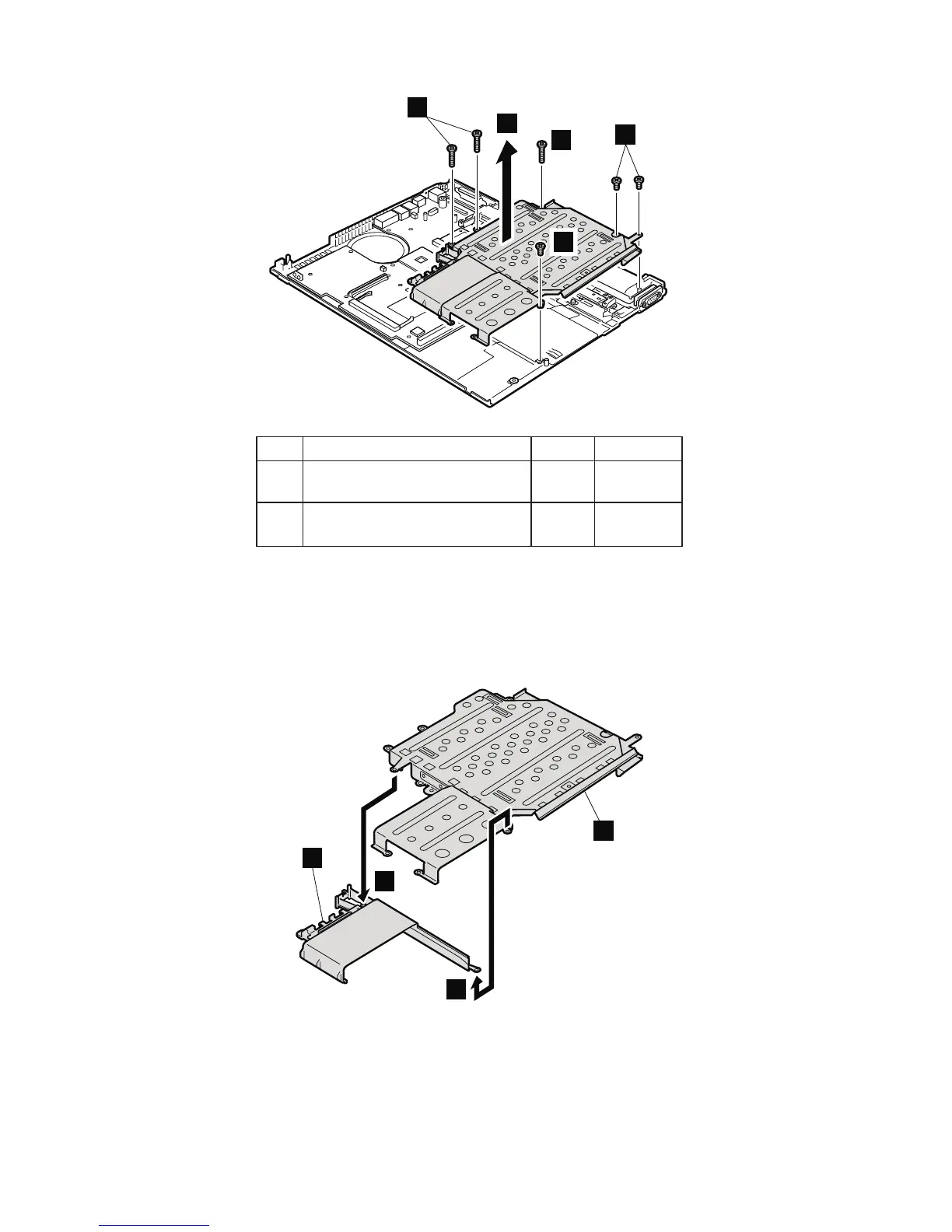

In step 5, remove the Ultrabay Slim guide rail assembly
and the hard disk drive guide rail together.
Separate the Ultrabay Slim guide rail assembly a and
the hard disk drive guide rail b.
6
6
a
b
Removing and replacing a FRU
130 T40/T40p, T41/T41p, T42/T42p
