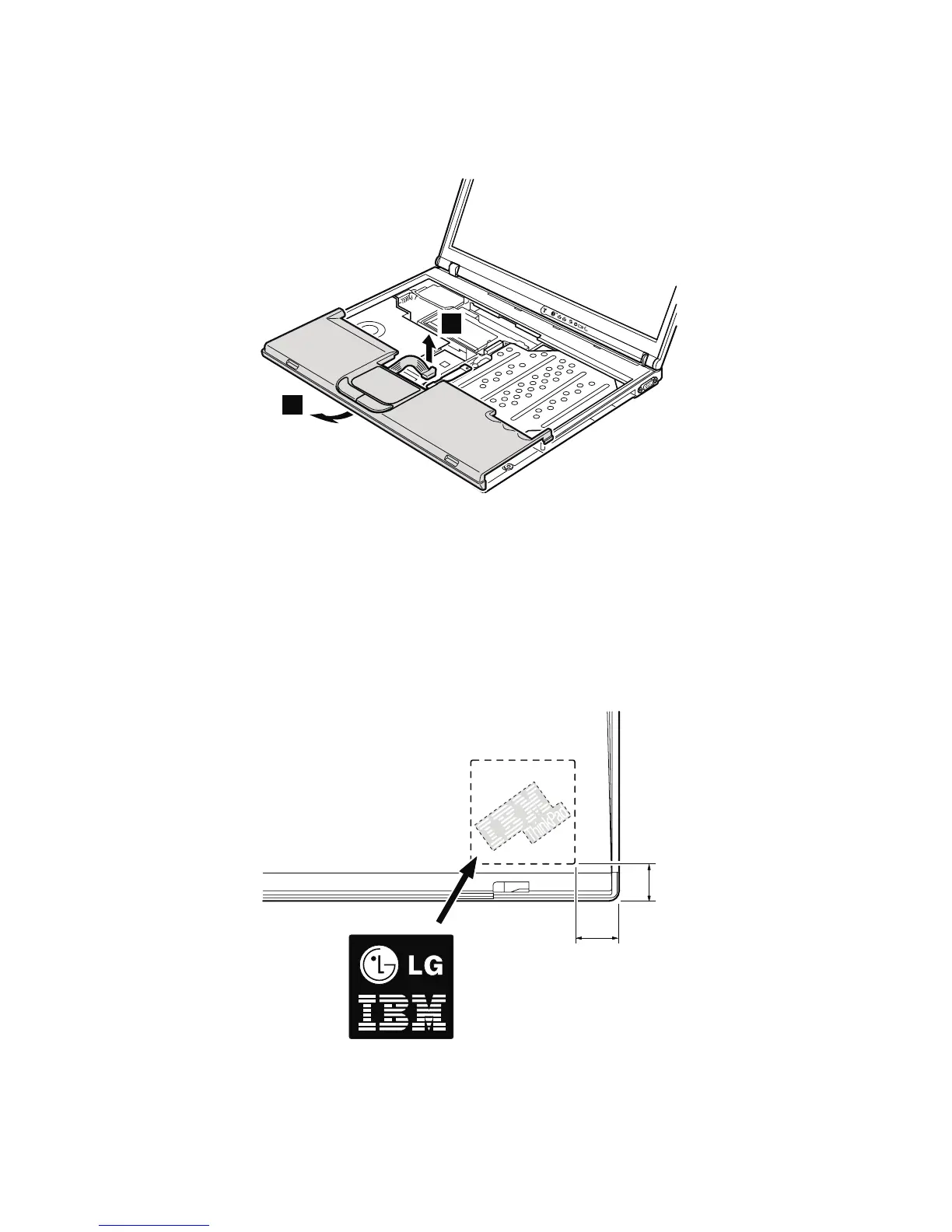

For a model with a touch pad, detach the touch pad
connector by pulling the tab with your fingers in the
direction of arrow 4. Then remove the palm rest in the
direction of arrow 5. For other models, skip step 4.
4
5
When installing: On a model with a touch pad, make
sure that connector 4 is firmly
attached.
Note for LG-IBM models (Korea) in T40/T40p series:
New palm rest FRU is shipped with the LG-IBM logo plate.
When you replace the palm rest, you need to stick the
LG-IBM logo plate as shown in this figure.
15 mm
15 mm
Removing and replacing a FRU
90 T40/T40p, T41/T41p, T42/T42p
