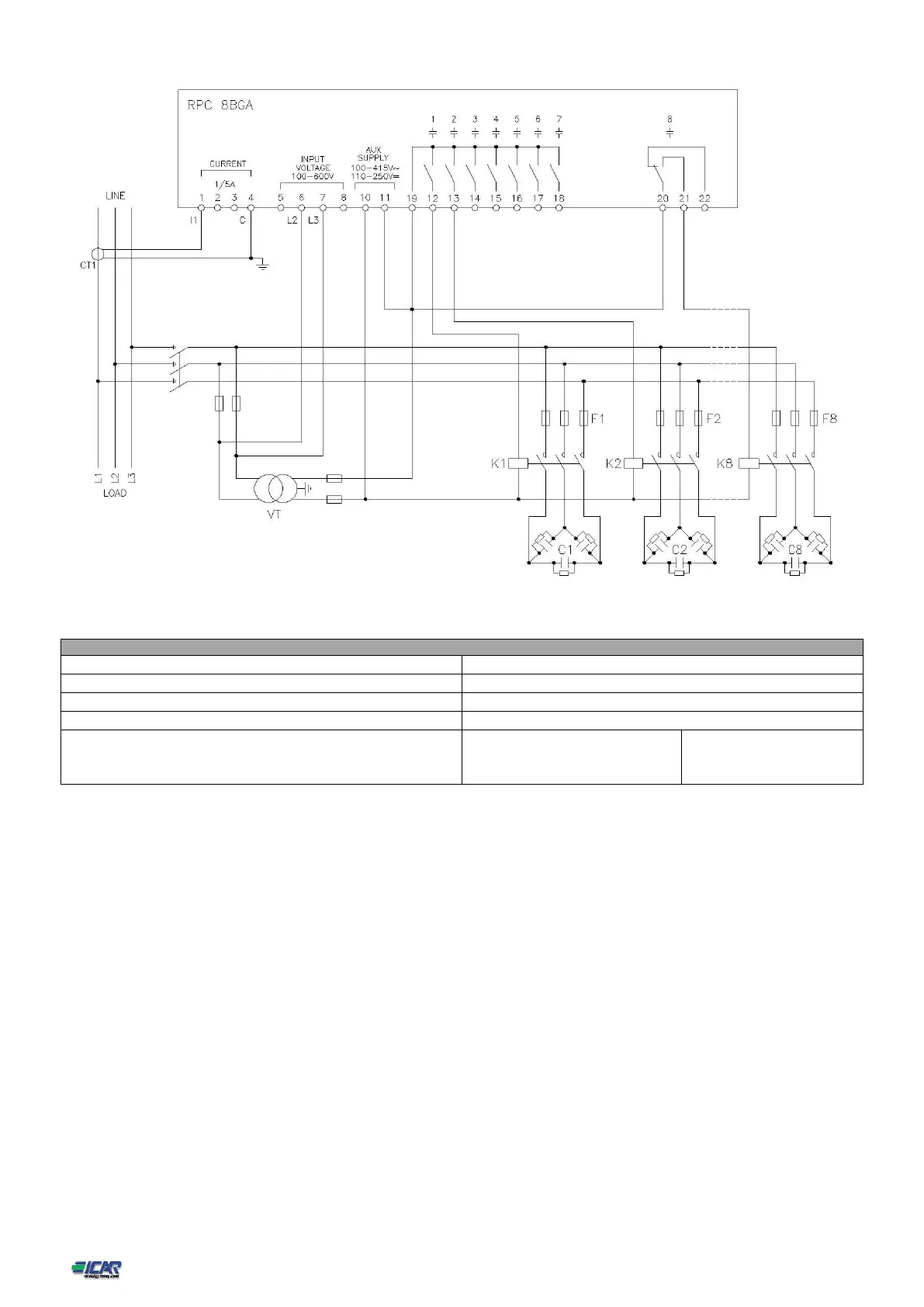

THREE-PHASE CONNECTION (typical). Wiring configuration to use for standard applications.
Voltage measure
1 ph-to-ph voltage reading L2-L3
Current measure
L1 phase
Phase angle offset
Between V (L2-L3 ) and I (L1)  90°
Capacitor overload current measure
1 reading calculated on L2-L3
Parameter setting
P02.03 = Three-phase
P02.04 = L1
P02.06 = L2-L3
P02.22 = LV
Full three-phase wiring, without neutral
