CR IMMO User Manual
5
2.4 IM2000 PRO
The IM2000 PRO works as a dedicated anti-theft immobilizer programmer. It
needs to work with the display tablet to perform the IMMO Matching (for some
vehicles) and IMMO Programming operations.

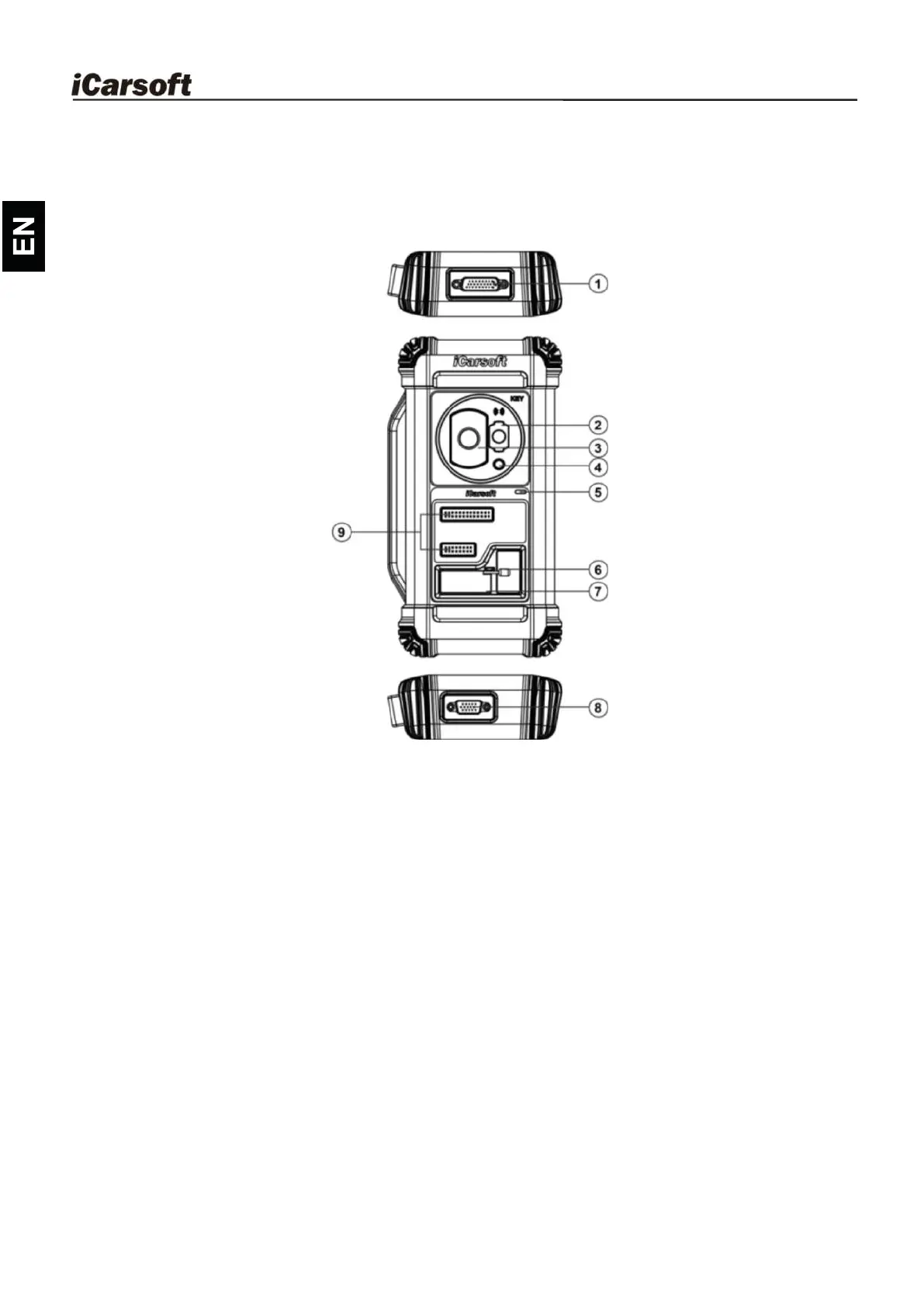

1. DB26 diagnostic connector - Connects with the Mercedes Benz infrared collector,
ECU cable and MCU cable etc.
2. Mercedes Benz infrared key slot - Holds the Mercedes Benz key.
3. Vehicle key slot - Holds the car key for RF defection.
4. Transponder slot - Holds the transponder (key chip).
5. Power LED - Red light indicates faults. Orange light indicates functioning
normally.
6. Valve - Tighten/Loosen the EEPROM board.
7. EEPROM transponder slot - Holds the EEPROM plug-in transponder or
EEPROM socket.
8. DB15 diagnostic connector - Connects with main diagnostic cable.
9. Cross signal pins - Holds the MCU spare cable or vehicle DIY signal cable to read
or write MCU and ECU chips.
Technical Parameters
•
Input Voltage: 12 V
•
Input Current: 500mA
•
Working Environment: 0 ~50
•
Storage Environment: -20 ~70
