Note! Position 8 - Part number 501855 - Electric Motor UL. 7 1/2 HP 3x220V AC 60
Hz 1770 rpm 11 kW
REVISIONS
REV.
DESCRIPTION
DATE
IN ITIALS
B
general update
23.11.2016
lm

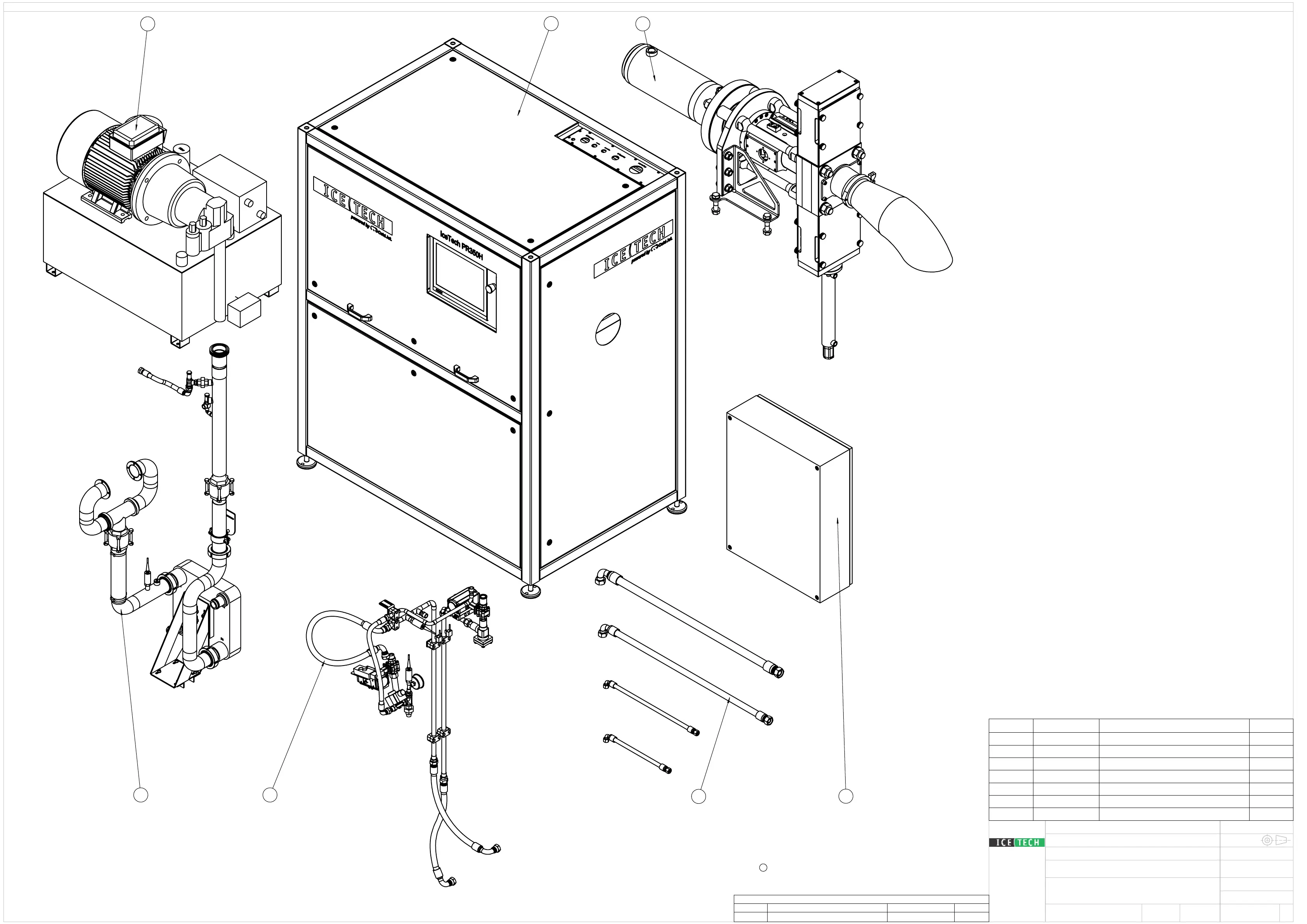

ITEM NO.
PART NUMBER
Description
QTY.
1 510103
Frame, complete, PR350H
1
2 504122
Hydraulic unit UL, PSL 10VSO 65-160-11-
200, PR350H UL
1
3 510503
Extruder Unit, V5, PR350H/750H, compl.
1
4 510509
CO2 out - PR350H V2 complete
1
5 513581
CO2 IN - PR350H UL - 24VDC
1
6 504770
Control, UL, PR350H V3
1
7 501959
Hydr. hoses - PR350H - Complete
1
