75,6
1921,1
73,6
1870
43,3
1100
43,3
1100
A
2
1
89,4
2269,5
94,6
2402,5
77,8
1975
DETAIL A
SCALE 1 : 20
3 4
Dimension in parantheses are inch.
Dimension without parantheses are mm.
ITEM NO.
DESCRIPTION
1
PR350H
2
CO2 Buffertank.
3
CO2 out pipe. 2 1/2" pipe = Ø63,5 mm. Internal
4
CO2 in pipe. 1" pipe = Ø 25 mm. Internal.
08-04-2011
ICETECH A/S
Drawing no.:
pj
Format:

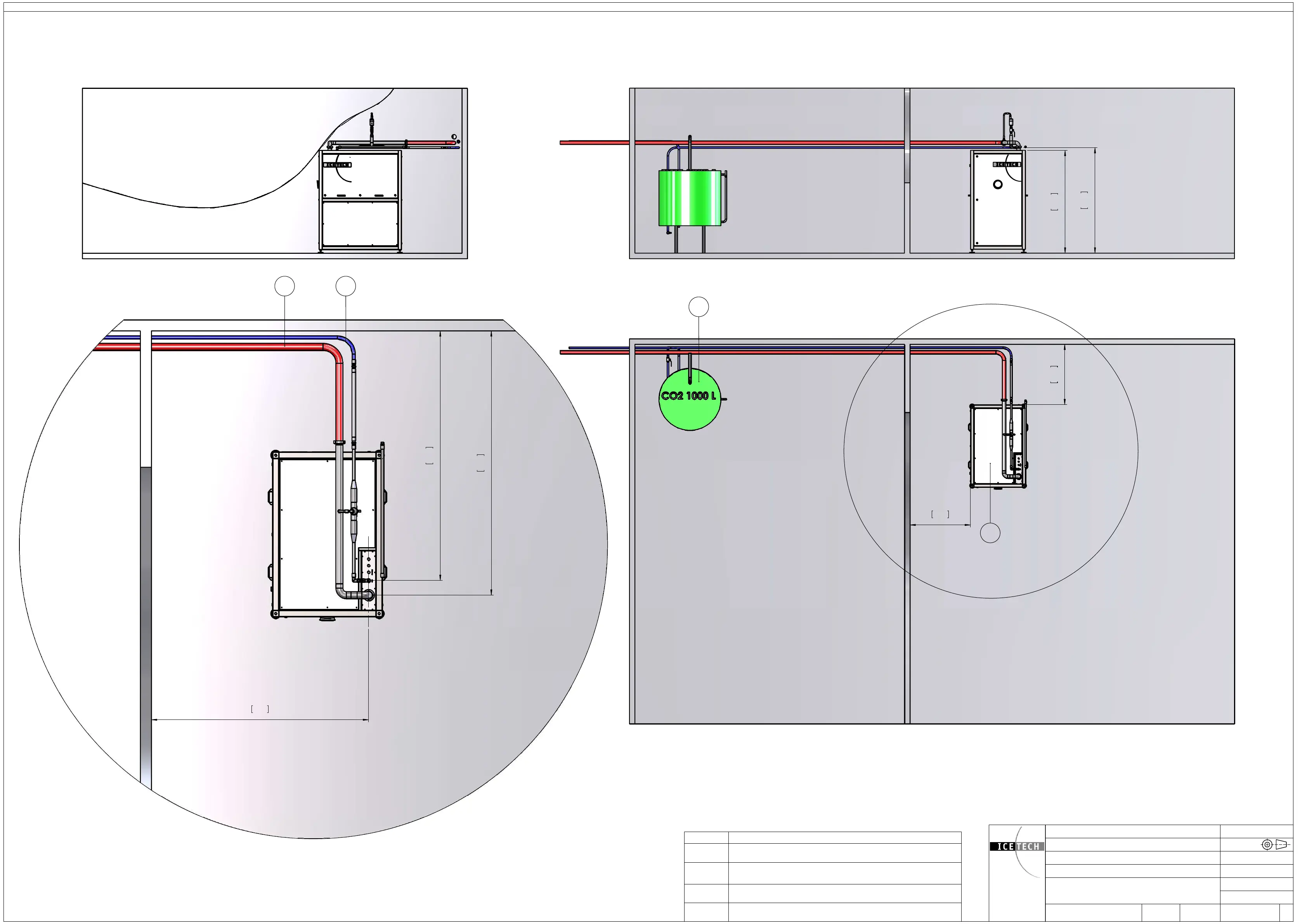

Principle Installation Layout PR350H
Description:
1:40
kg
Weight:
Scale:
Date:
A
Rev:
PROPRIETARY AND CONFIDENTIAL:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ICETECH A/S. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF ICETECH A/S IS PROHIBITED.
Creator:
A2
Projection:
Sheet no:
2
-Default-
Industrivej 37
DK-6740 Bramming
TLF. +45 76561500
FAX. +45 76561509
www.icetech.dk
