Procedures for maintenance and repair
www.icetechworld.com | IceTech Dry Ice Technology | Rev 1
Page 34

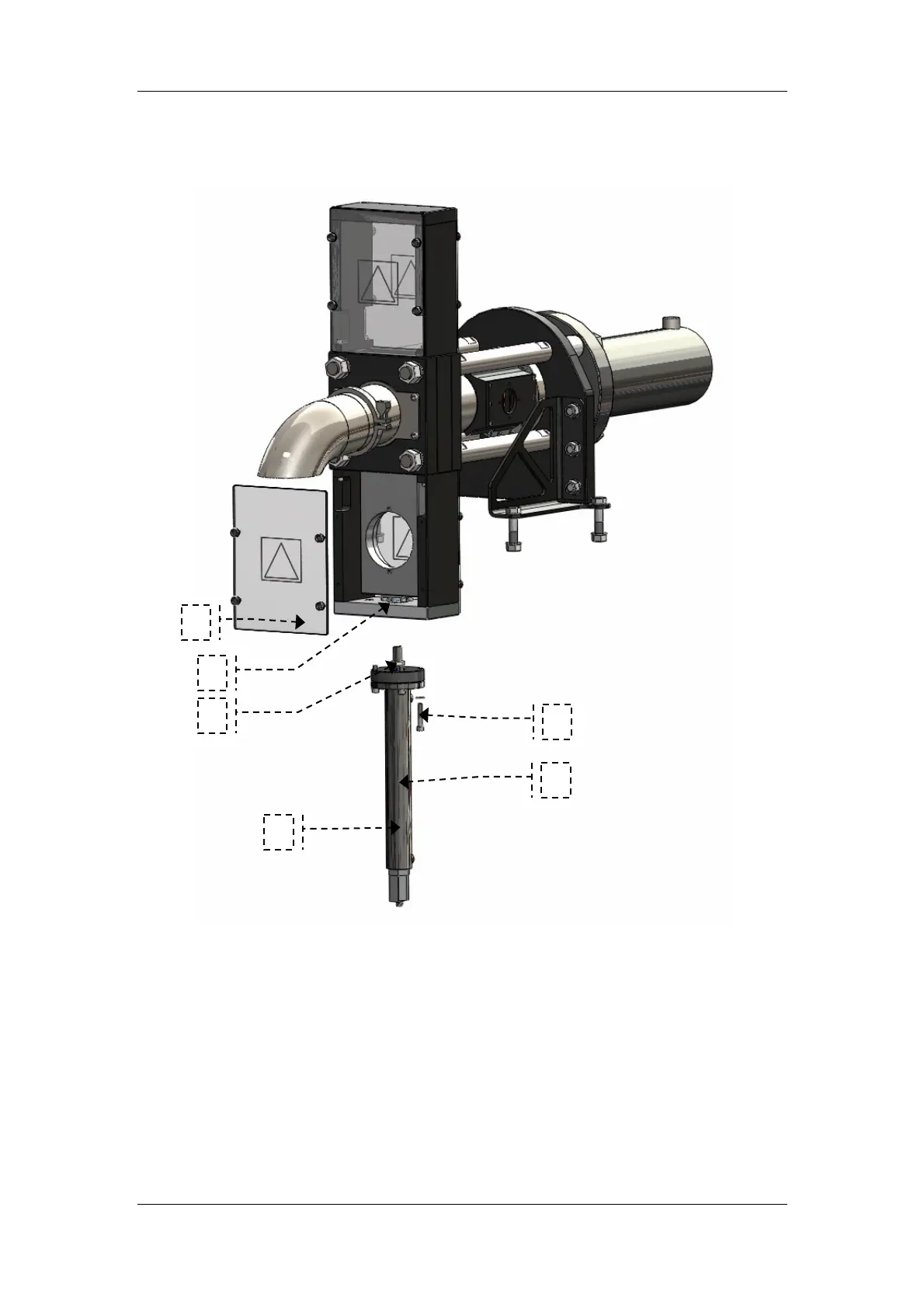

Procedure no. 8 Replacement of Ø50 hydraulic cylinder.
Step (1) Disconnect the plug for Balluff transducer and the hydraulic hoses, plug both hose
connection and connections on the hydraulic cylinder, be very careful and protect the Balluff
connection against any damage.
Step (2) Dismount the 4 screws and washers.
Step (3) Take off the Plexiglas guard plate.
Step (4) Pull the hydraulic cylinder down and let it stand on the bottom plate of the machine.
Step (5) Loosen the contra nut.
Step (6) Hold this nut while loosening contra nut.
Assemble the hydraulic cylinder and die changer again, going backwards in the procedure
steps.
2
5
4
6
3
1
To Next Page
